Gabion

Mediteranean style sunken gazebo

on Thursday, 01 April 2021. Posted in Gabion

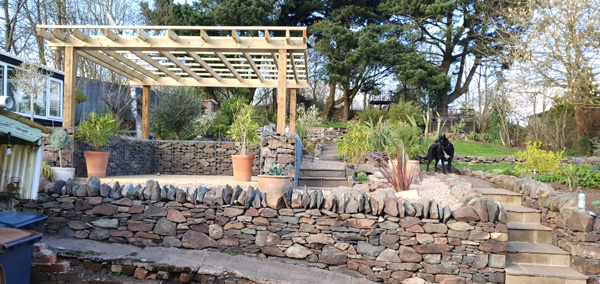

Mediteranean style sunken gazebo.
The stone is all charnwood walling stone.

The pergola legs were set in  concrete on adjustable legs .kind of had to backward engineer . The filled gabion provide rock solid support to structure allowing simple uncomplicated structure.

covered-gabion-seating-area

gabion-foundation-pergoda

pergoda-and-gabion

Adrian's Immaculate Modern garden entertaining space

on Tuesday, 07 February 2017. Posted in Gabion

With an eye for design Adrian has cleverly transformed his back garden from a difficult to use sloped area into a modern entertaining space. Utilising clean straight lines and cleverly mixing materials, (including 2 types of stone infill) we think he has achieved a spectacular result. The gabions function both as a retaining wall, to flatten out the lawned area and as a framework for the seating area.

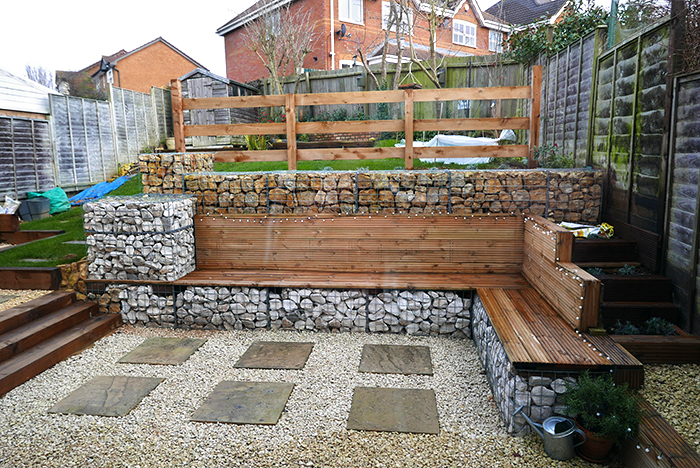

modern back garden

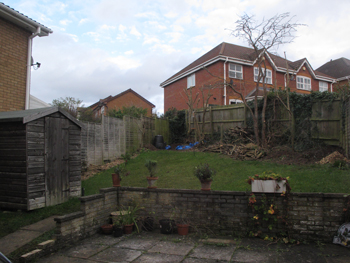

Before

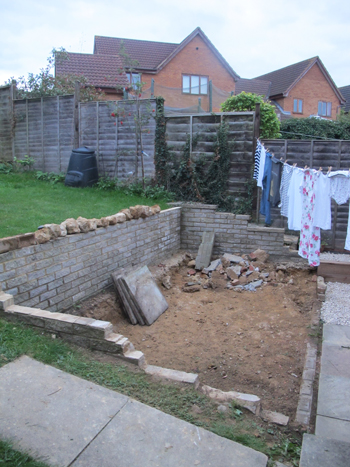

before2before1



After

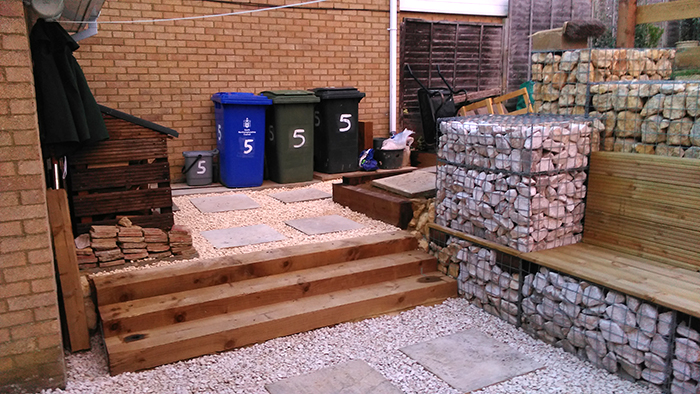

Transformation of sloped back garden

Apartment block perimeter with Uplit Gabions

on Friday, 22 March 2013. Posted in Gabion

gabion wall

Gabion used as a perimeter wall for an apartment complex car park.

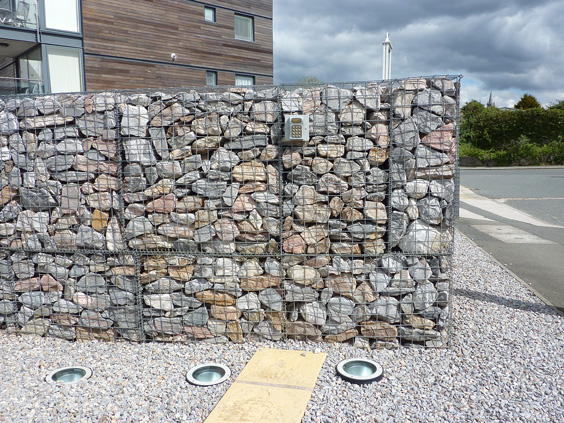

The gabion baskets are used as an architectural feature with uplights.

uplit gabionsfreestanding gabion wall

Andy Beard

Border Order Garden designs and installation

on Friday, 25 August 2017. Posted in Gabion

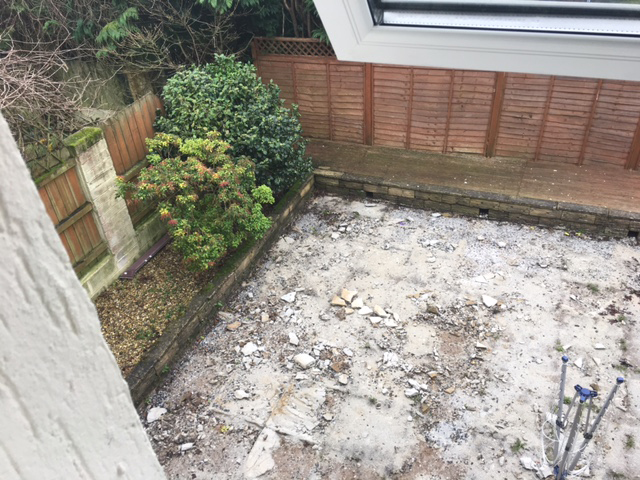

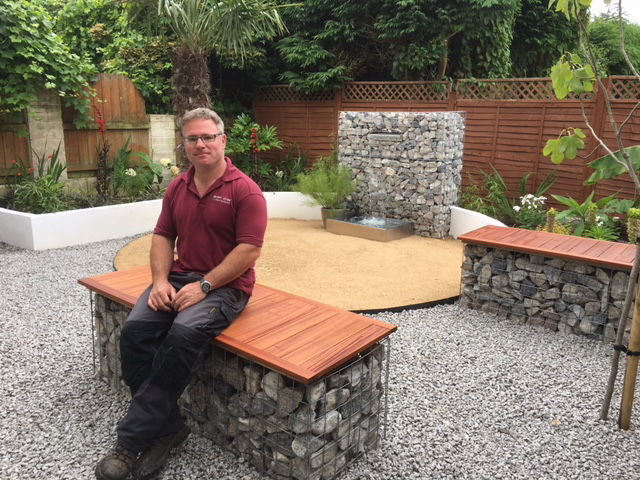

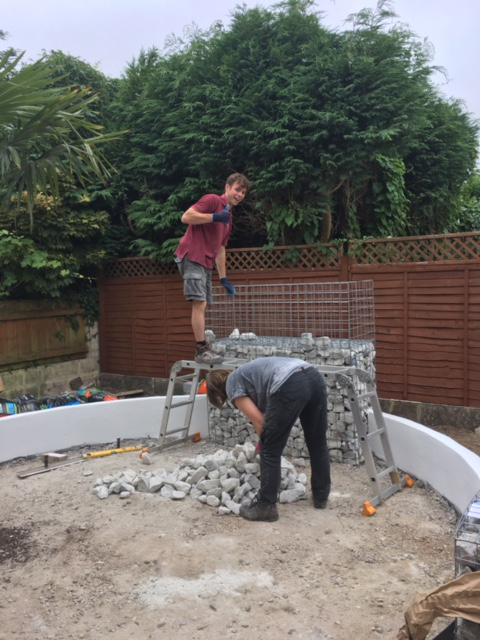

Border order Garden design using mixed materials, including Gabion seating and water features.



Border Order are based in Liskeard Cornwall.



border-1

border-order-gabion-install

border2

border-3

Boundary Gabion wall for drive

on Thursday, 16 July 2020. Posted in Gabion

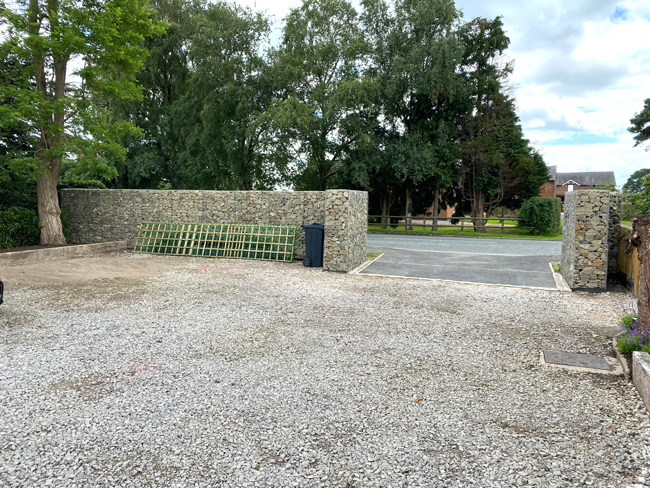

This is a very good example of a Gabion boundary wall for a driveway.

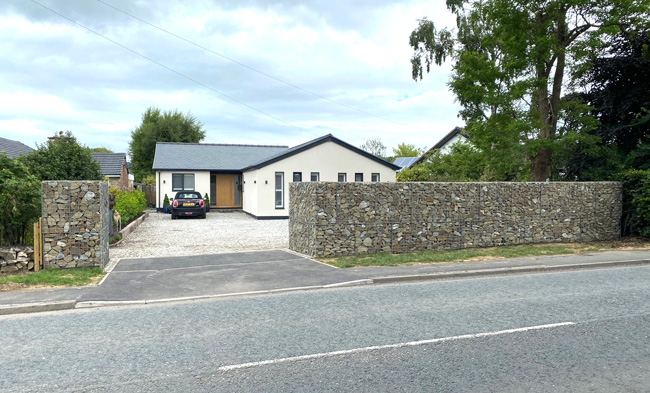

gabion-boundary-fence

gabion-boundary-fence-2

Chris' gabion Seating and Firepit, using sleepers for tops.

on Friday, 01 May 2020. Posted in Gabion

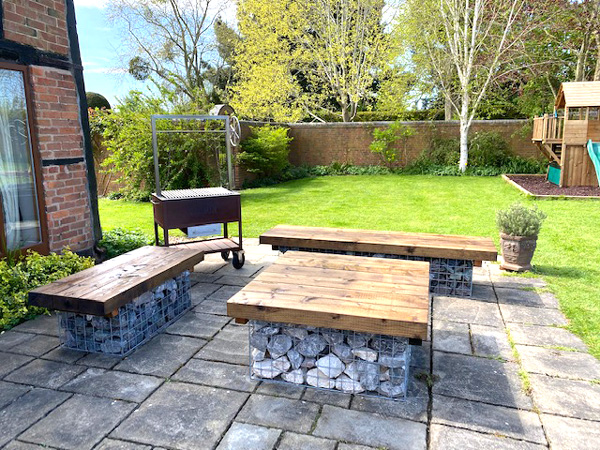

An example of Gabion Seating around a firepit in a country setting.

The Gabions are in 4mm, cut down to 381mm high. They had to be shorter due to the thickness of the sleepers. The Sleepers were clamped down by fixing a piece of timber under the lid, at either edge of the basket, upwards to the sleeper.

The gabion basket under the table  was 457mm high again with 100mm sleepers on top.  The sleepers are separated by 8mm to stop water pooling in the surface.



To prepare the sleepers, they were sanded with 36 grit then 60 grit before finishing with 3 coats of Osmo Decking Oil.



gabion-seating-and-firepit

gabion-bbq-area

Whisky

gabion-seating-and-gabion-bench

gabion-seating-around-firepit

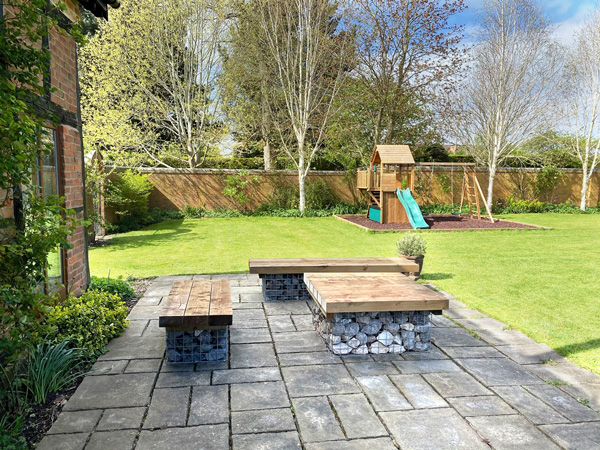

gabion-seating-in-country-garden

Dave's levelled and returfed back garden.

on Tuesday, 16 May 2017. Posted in Gabion

Dave has levelled his sloped back garden and created a set of steps using gabion baskets. The baskets are .5 deep and he has further saved on stone by using brick backfill where its not visible.

finished

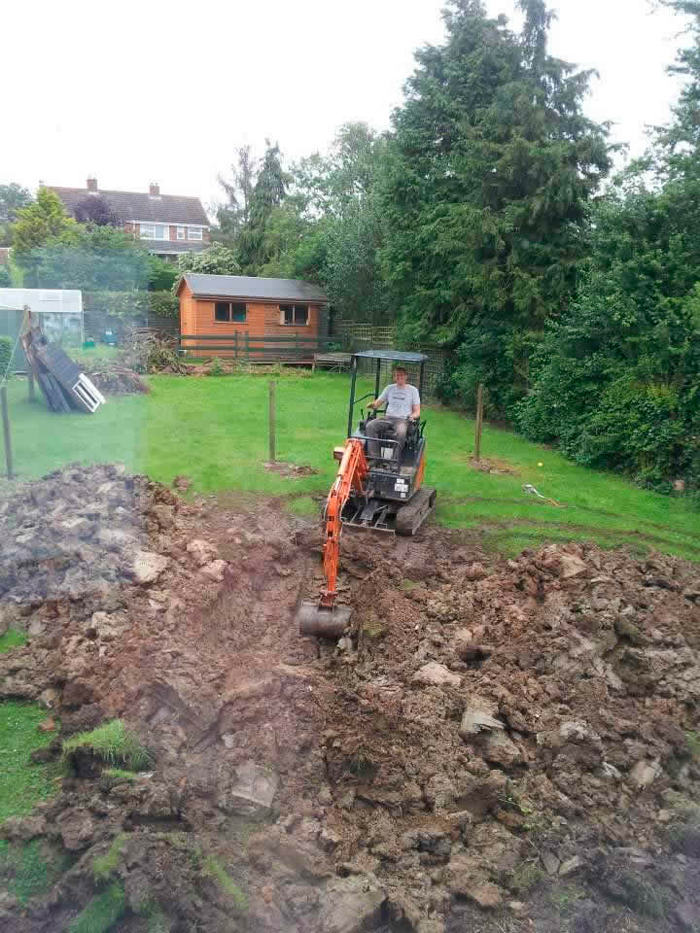

digging

constructed

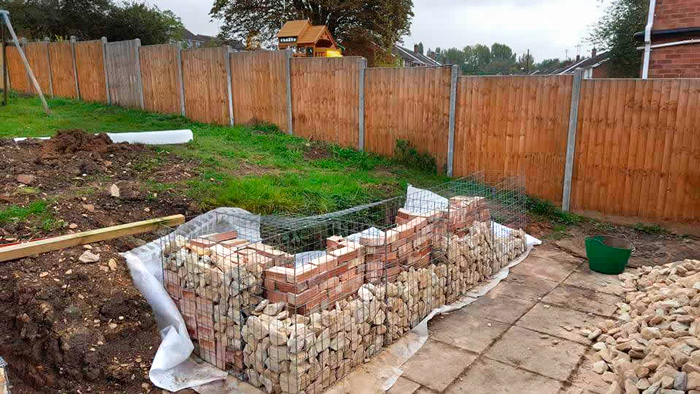

front-faced

landscaped

turfing

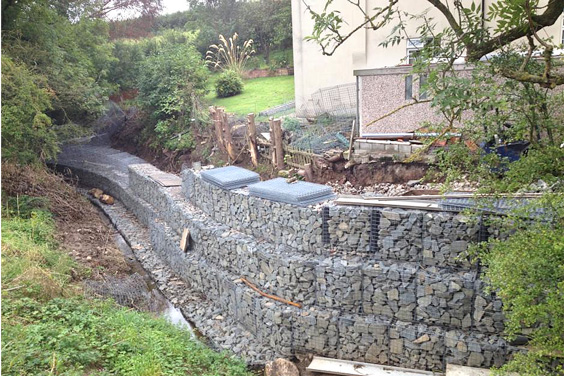

David's Curved gabion wall protecting against river erosion.

on Thursday, 21 March 2013. Posted in Gabion

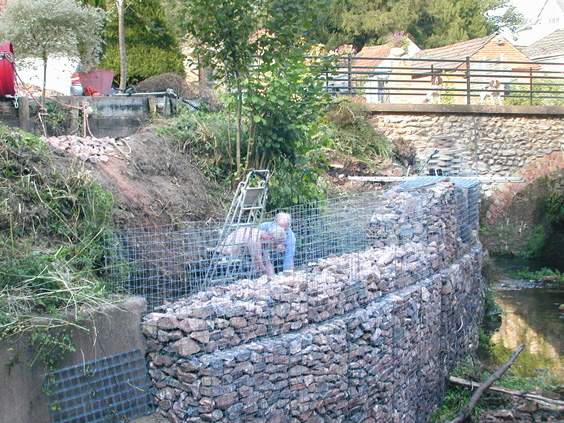

curved retaining wall using gabion baskets

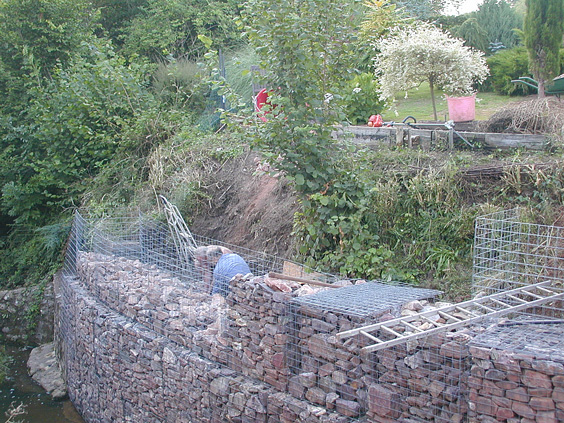

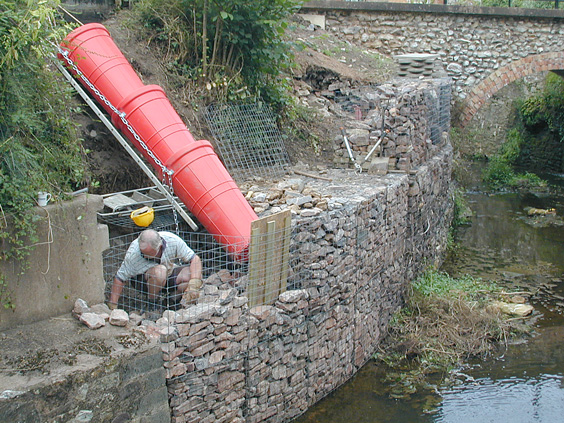

David's curved retaining wall set on a solid footings, curve created on site using extra panels. This shows what possible even with difficult access.

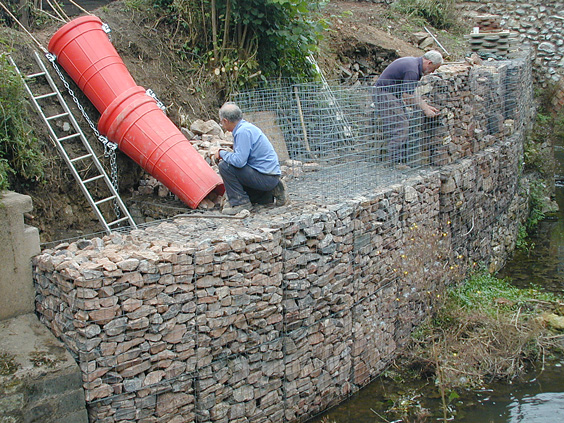

people installing a gabion wallbuilding a retaining wall with gabionsgabion wall in construction imageretaining wall construction imagehigh gabion wall in constructiongabion wall next to a stone wall

Andy Beard

Ellen' retaining wall and driveway

on Wednesday, 17 July 2013. Posted in Gabion

Before:

ellens-retaining-wall-4

After:

ellens-retaining-wall-1

We bought the banking at the side of our house in February 2013 and as you can see it was overgrown and we wanted to create an additional parking space (the bricked area). We thought about building a dry stone wall but decided against it due to cost and the fact that others would have the benefit of seeing the wall and we wouldn't. We looked in to gabion baskets having seen them used around our area for various projects including a retention wall by the local water authority. We thought they were a very good alternative and would also provide a habitat for wildlife, something we were keen to do.

We did a search on Google and found your website and found it very helpful and informative. We measured the area we had to cover and were able to use your website to gauge the best way (and cost effective way) of creating the wall that we wanted. We live near a local Cemex Quarry and arranged to order sugar stone from them to fill the baskets. We arranged for Dean to come along, dig out a base for the baskets (and that was also an advantage that we did not have to put a concrete base in), the baskets stood on solid ground. We used the digger and many helping hands to fill the baskets and wire them up and we used the coils to join them together. They created a very solid base for us to work with. When I say we, I mean John my husband and his father David. The next thing was to level the earth on top of the baskets and then decide how we were going to create the parking area. We decided on block paving, so hardcore was laid with a sand base and then the bricks were laid. John also installed some steps down on to the parking area. He then grassed the rest of the area (around the elderberry tree and we sat back and waited for the grass to grow, it took some time due to the late Spring/Summer but has now flourished.   John then decided to top off some of the baskets with Indian flags and then erect fence panels to create a private area. We now have tubs of trees and plants on top of the flags and it has made a fantastic area for us to use. I have to confess that we don't use it to park our car on but use it as a patio area. It has been fantastic in the recent sunny weather and has been much admired by neighbours, family, friend and passersby. I am now the proud owner of a sun bed, my first in 30 years as I now have somewhere to sit out and soak up the sun.

Before:

ellens-retaining-wall-6

After:

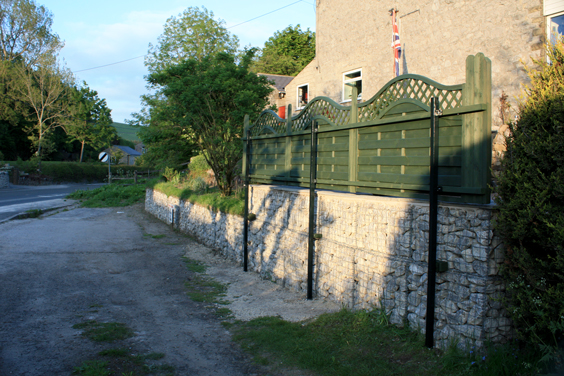

ellens-retaining-wall-7

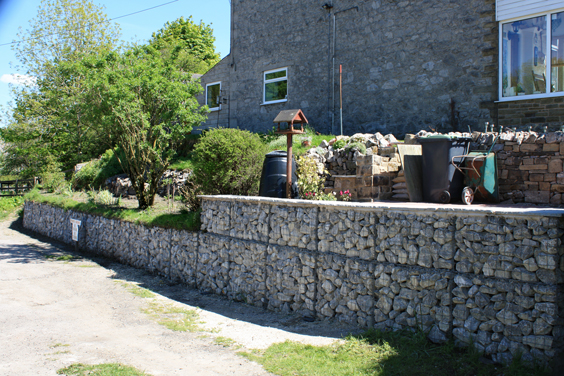

ellens-retaining-wall-3

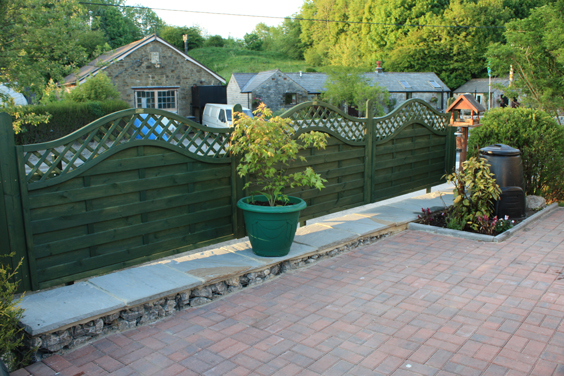

ellens-retaining-wall-2

ellens-retaining-wall-5



Andy Beard

Fishing Platform France

on Tuesday, 25 June 2019. Posted in Gabion

Fishing Platform France

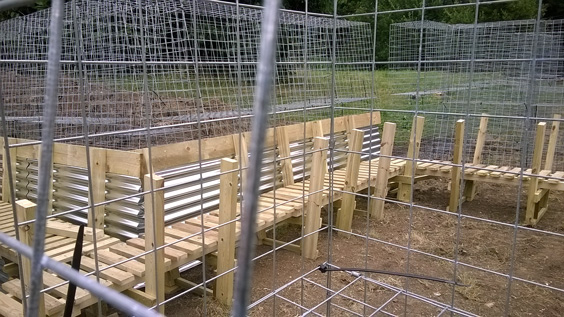

We are using the Gabions to construct the Kingfisher Swim or King Swim. We wanted to create a retaining wall to give the fishing peg some shelter and to help adjust the levels from the Gazebo area down to the peg. We wanted 2 anglers to fish comfortably and that is why we have the size of a 15 metre frontage.

fishing-platform

retained-beach-for-fishing-platform





G.M.S gabion installations

on Wednesday, 16 May 2018. Posted in Gabion

sanderson-logo

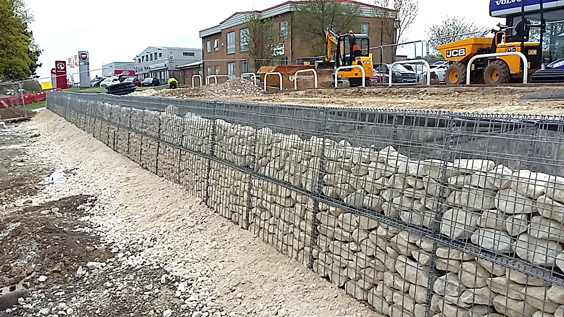

We are a new company with over 17years experiance and are dedicated to high a quality finish at competative rates.
Finishing on time and on budget.
Tel 01422706773
07593532491

Sanderson-internal1
sanderson-internal-2
sanderson-int-3

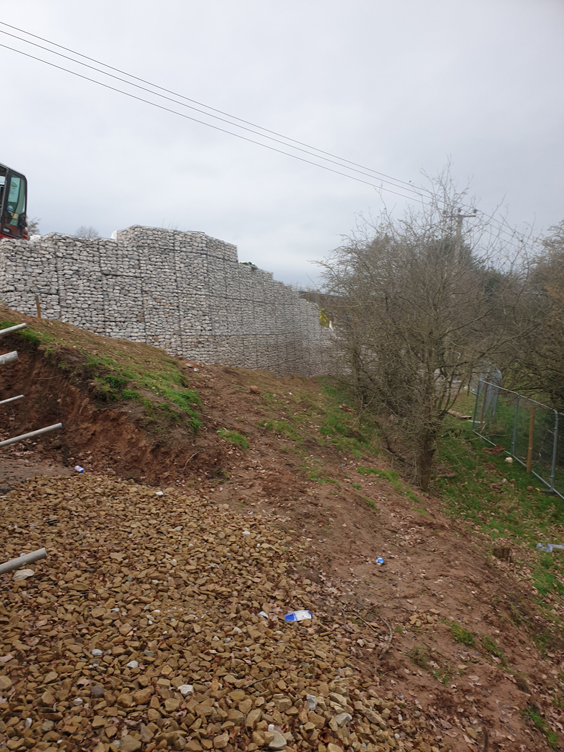

gms1

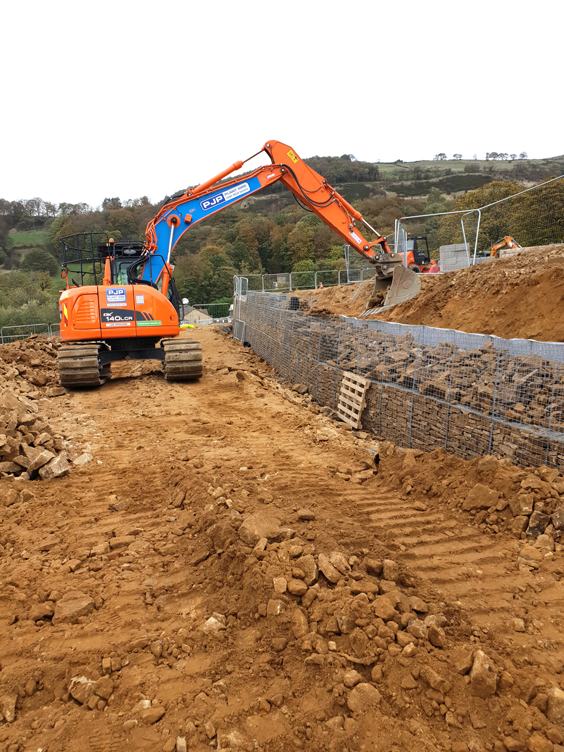

gms2
gms3
gms4

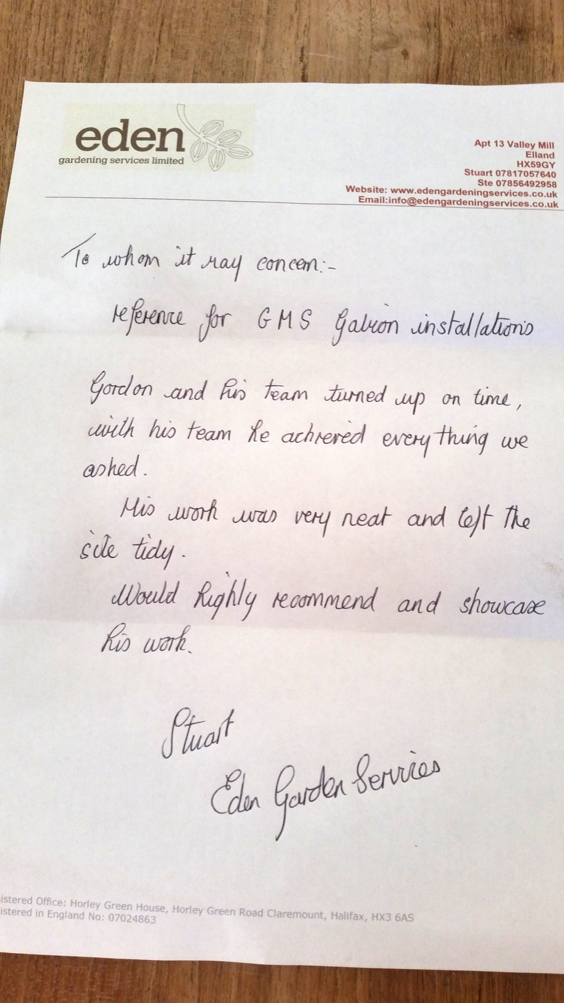

sanderson-reference

Gabion Baskets we've seen in use.

on Friday, 22 March 2013. Posted in Gabion

coastal gabion wall

Gabions used around a car park filled with limestone. Its normally recommended that a pvc coating is used in the environment as salt spray can dramatically reduce the lifespan.

curved coastal gabion

gabion bank

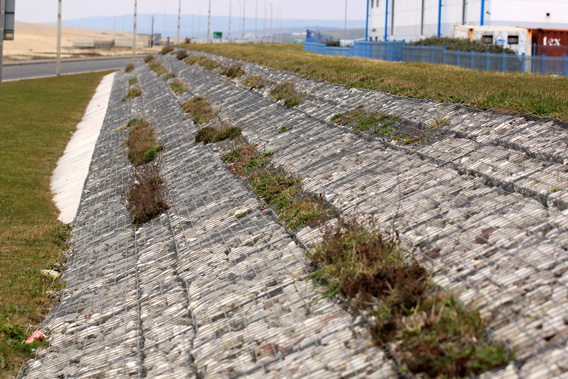

A Gabion mattress is used to keep an embankment tidy.

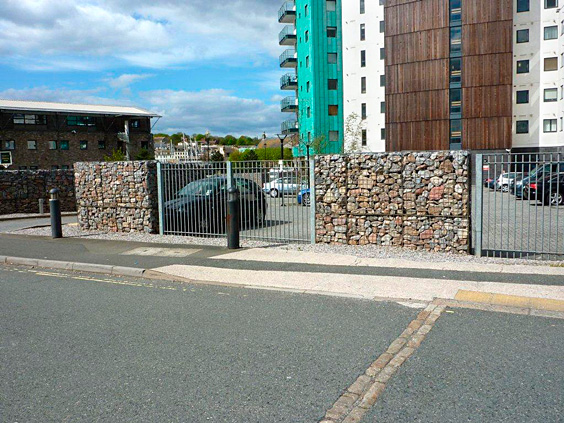

freestanding gabion wall

A freestanding gabion wall using as the perimeter fence of an apartment block. Normally a 4mm wire gabion basket is used for architectural uses to give a very straight finish. Posts are used within the basket to give support as the baskets are less deep than recommended.

gabion bench

Gabions are used by garden designers to make Benches, as they are heavy they give very good support.

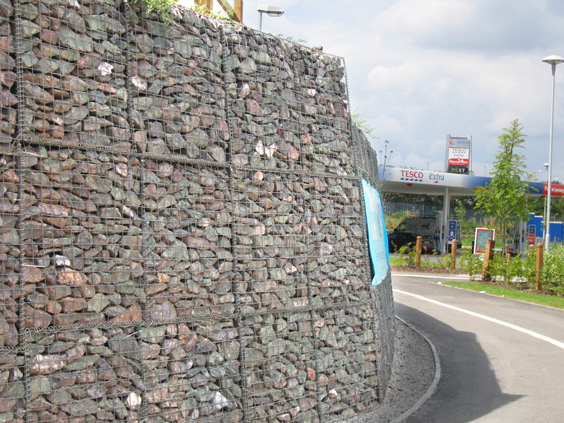

gabion baskets with helicoils

Curved gabion wall for supermarket forecourt

gabion revetment

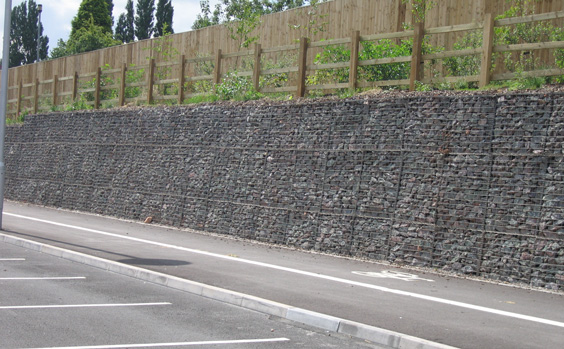

Gabion revetment with wooden fence on top, the wooden posts sit within the baskets.

roadside gabions

Roadside gabions. If you look by the side of the road you will see gabions everywhere. They have a lifespan of 60 years and don't fail like concrete walls when water builds up behind. They are also considerably cheaper than standard block retaining walls.

gabion circular design image

This is an example of a gabion made by just using the panels and making to shape on site. This is best done by cutting the mesh around a template and spot welding a wire on to the edge. The weld points can be treated with a galfroid spray to stop rust and tidy up discolouring.

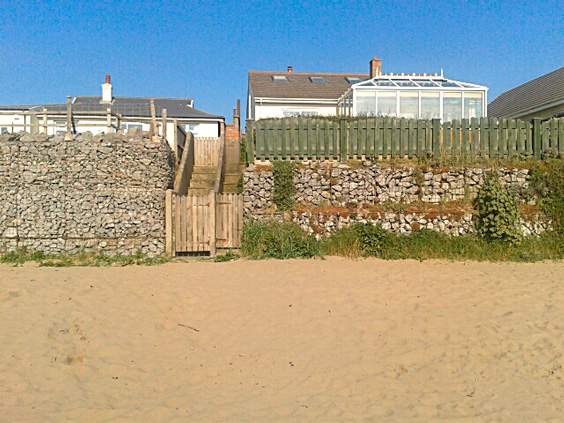

sea front gabion use image

Sea front gabion wall. Its normal to use a pvc gabion basket. In the scenario a 4mm wire has been used as a galvanised finish was prefered for aesthestics.

vegetation gabion ideas image

You can plant the baskets with plants and vegetation that can survive in dry situations with limited soil.

fence posts placed in gabions

Fence post can be put within the gabion basket coming out the top. Put the bottom of the post within the basket then fill around it with stone. The stone in the basket works as the support for the posts.

chelsea-flower-show-gabion-baskets

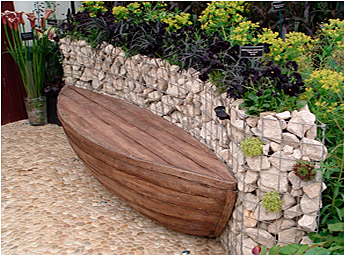

chelsea-flower-show-gabions

Gabion baskets at Chelsea flower show. The custom made curve was made on site using a spot welder.



Andy Beard

Gabion boundry Wall

on Tuesday, 16 May 2017. Posted in Gabion

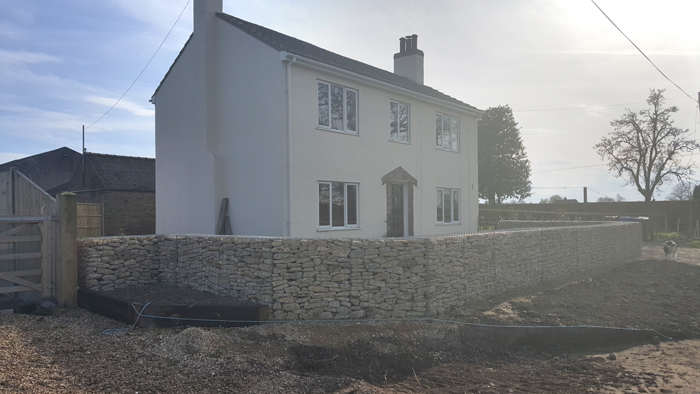

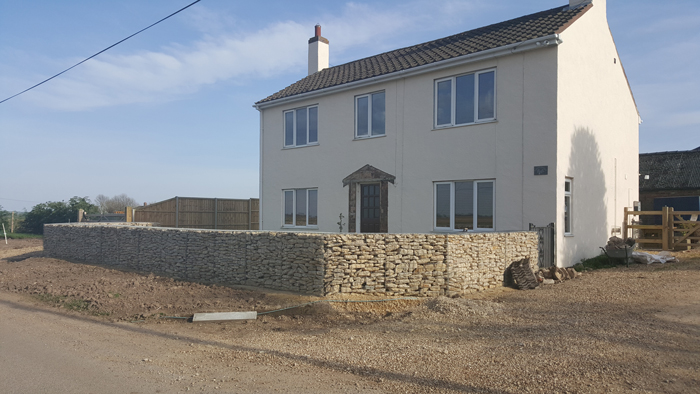

An example of a residential boundry wall using gabion baskets.

gabion-boundry-wall

boundary-wall-1

Gabion Bridge support

on Monday, 09 September 2013. Posted in Gabion

gabion-baskets-river-erosion

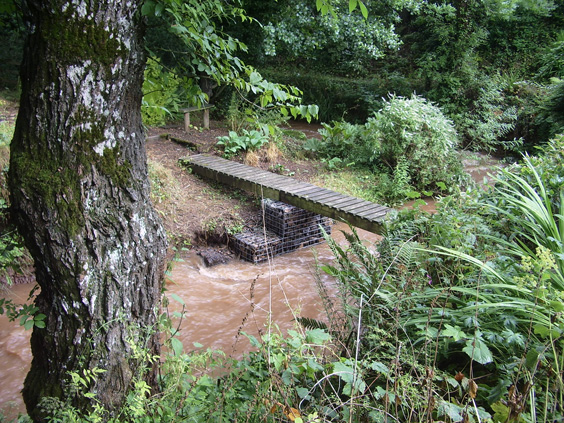

photo of our rescued and restored footbridge (12' span) over our little stream supported by your gabion baskets. (due to be re-assembled week commencing 8th July - our holiday project - pray for good weather) This bridge has been swept away by floodwater four times now and each time we have been able to retrieve the bridge downstream so with the help of your gabions it will not be going anywhere in the future.

I am so grateful to Helen for all her patience and knowledgeable advice -please pass this on to her.

All the best

Sue Catterson

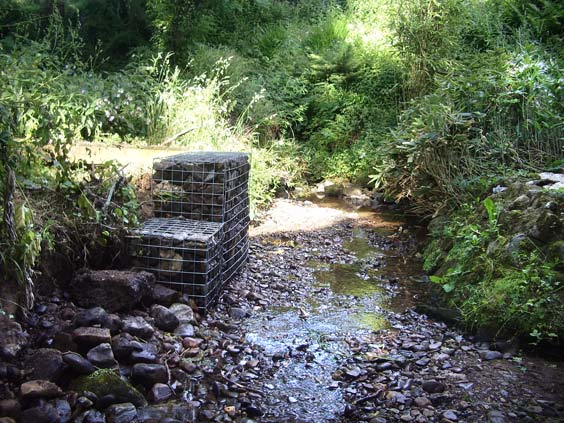

gabion-basket-river-erosion

Andy Beard

Gabion car park cladding

on Monday, 10 June 2013. Posted in Gabion

gabion-cladding-for-car-park

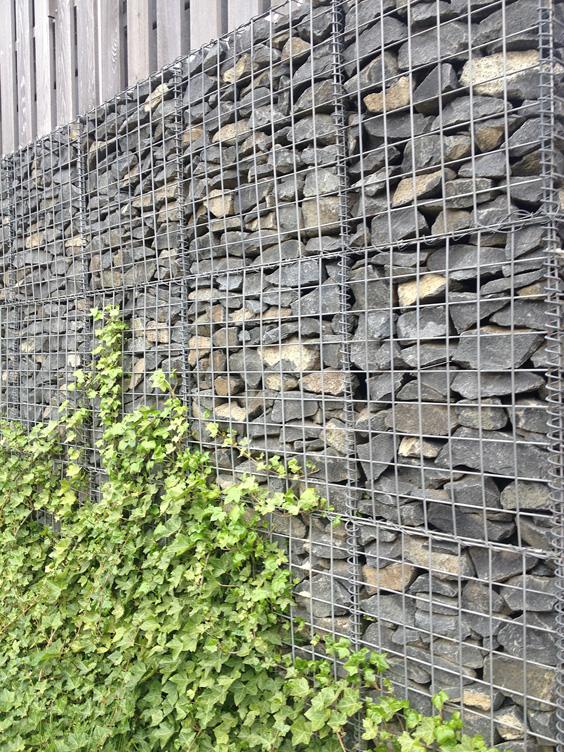

This is an example of a 300mm deep gabion basket used as a gabion cladding for a Birmingham car park. A 4mm gabion wire is used for architectural purposes, especially important for cladding. The basket verticals have been joined with helicoil springs, this is an example of a very profesional install.

The baskets are supported by metal posts within the structure

gabion-cladding

Andy Beard

Gabion Courtyard and clever sleeper bench.

on Monday, 04 March 2019. Posted in Gabion

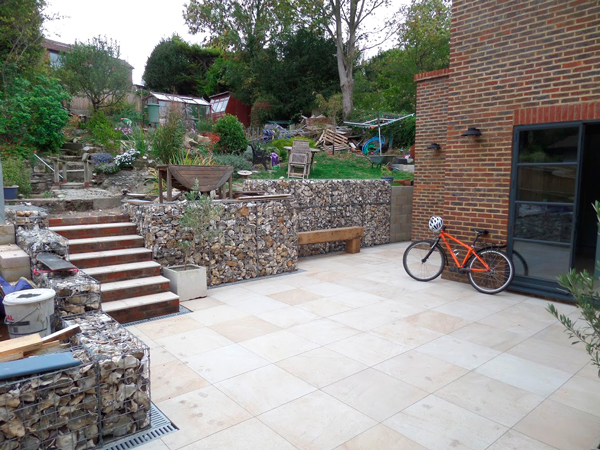

Cortyard and patio, Framed and retained with Gabion baskets. Clever built in Timber sleepr bench supported by gabions.

patio-gabion-3

patio-gabion-2

patio-gabion1

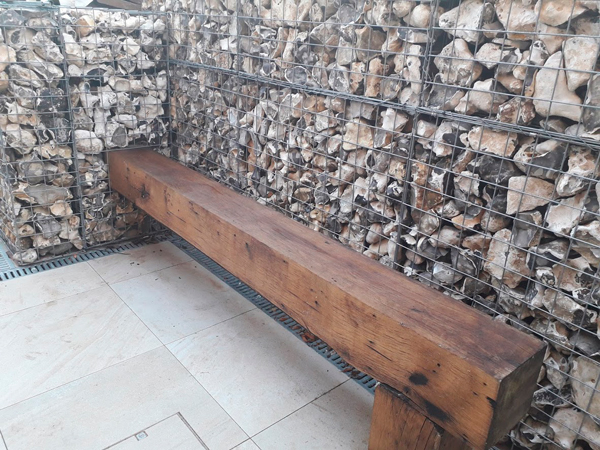

sleeper-bench-with-gabions

Gabion drinks bar, mesh and pebbles

on Wednesday, 15 July 2020. Posted in Gabion

Gabions drinks bar using cutom sized 2 inch mesh gabions and pebbles.

gabion-bar

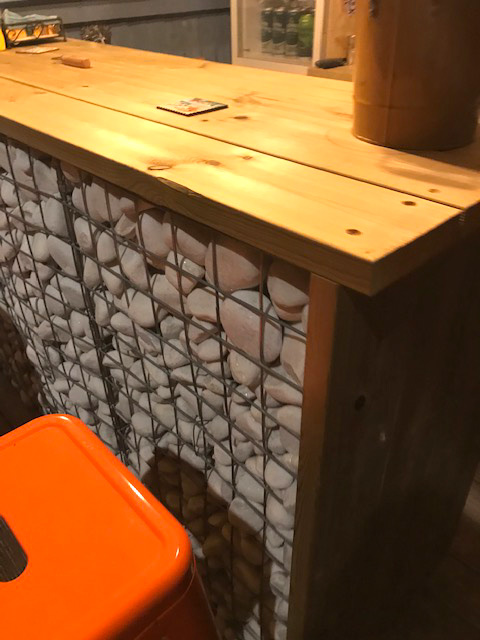

gabion-drinks-bar

gabion-cupboard

Gabion parking area by Chris Ryall

on Thursday, 10 January 2013. Posted in Gabion

Gabion wall Chris Ryall

The gabions were perfect for the job I needed and very competitively priced. As a DIYer, the design and installation instructions on the website came in very handy too

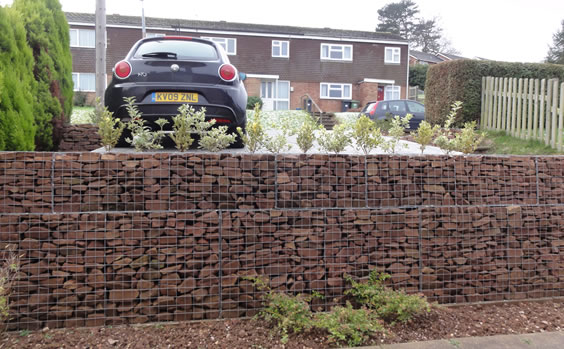

Gabion Baskets for parking area



gabion retaining wall Chris Ryall

Andy Beard

Gabion Planter for Vegetable bed or Flower Bed

on Thursday, 25 February 2016. Posted in Gabion

Gabions can be cut down to 225 or 300mm to make the ideal long lasting vegetable bed. The benefits of a gabion planter are:

They are porous. If lined with a weed membrane you can control water retention without it becoming saturated.

You can choose decorative infills for your gabion planter.

Long lifespan of 60 years.

You can dissasemble 1 gabion basket to gain easy access if replacing the soil is necessary in your gabion planter.

gabion-planter-2

gabion-planter-bed

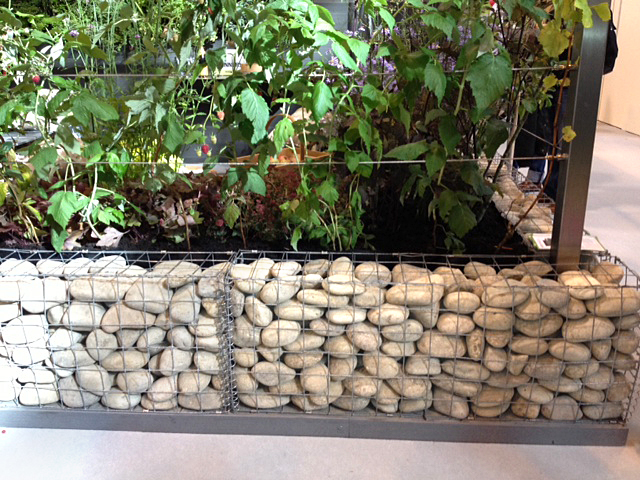

garden-planter-made-from-gabions





Gabion pond

on Wednesday, 20 September 2017. Posted in Gabion

Gabion pond and drive way

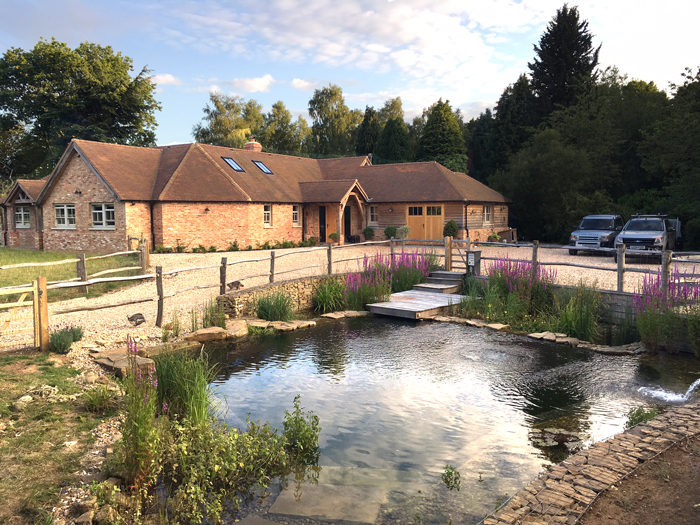

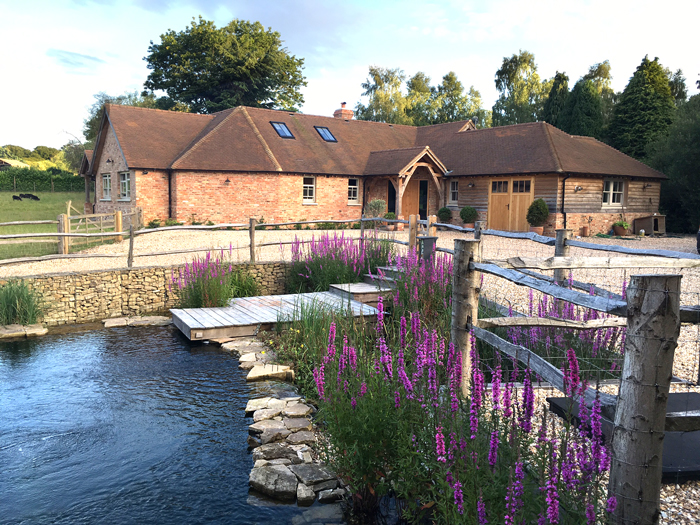

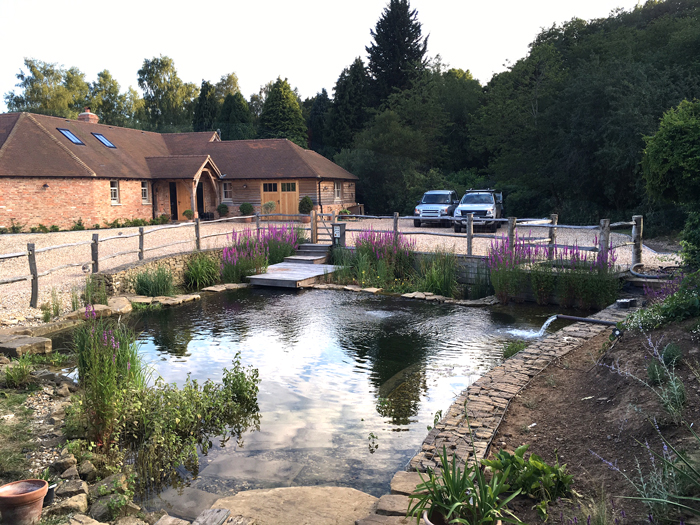

Beautiful pond and driveway made using gabion baskets. Immaculately planted and filled using local stone. Installed by Rhino Construction 07932753328 install in the Surrey area.



gabion-pond-1

gabion-pond-2

gabion-pond-3

Gabion Retaining wall using Granite A

on Friday, 28 June 2019. Posted in Gabion

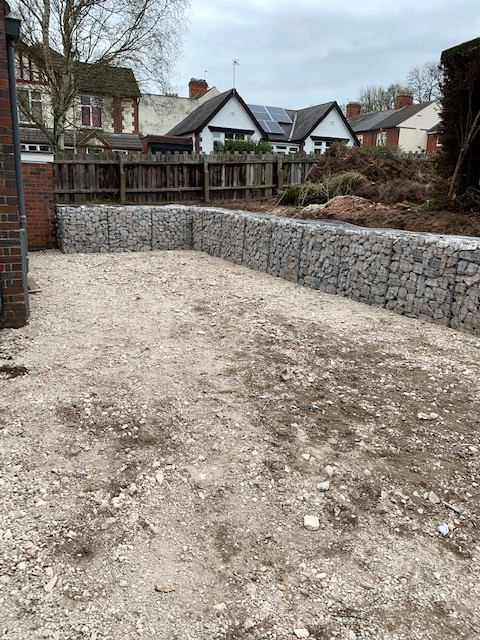

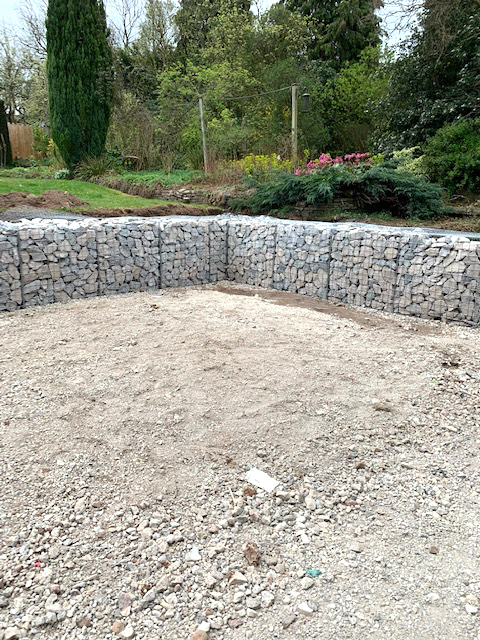

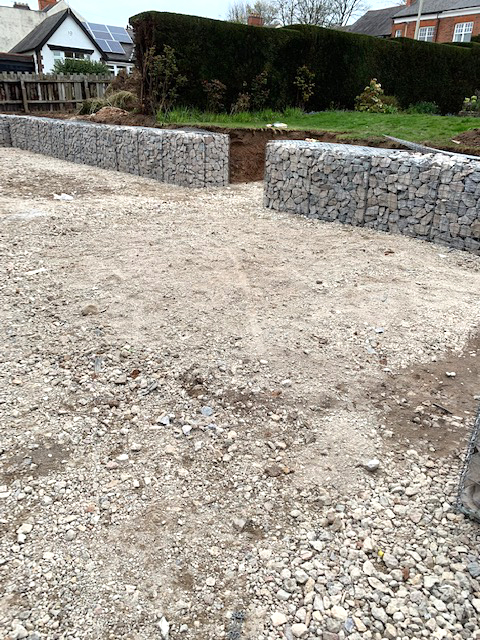

Retained Garden and driveway filled with the Granite A Gabion sold on the gabion stone section of website.IMG 31842

IMG 31852

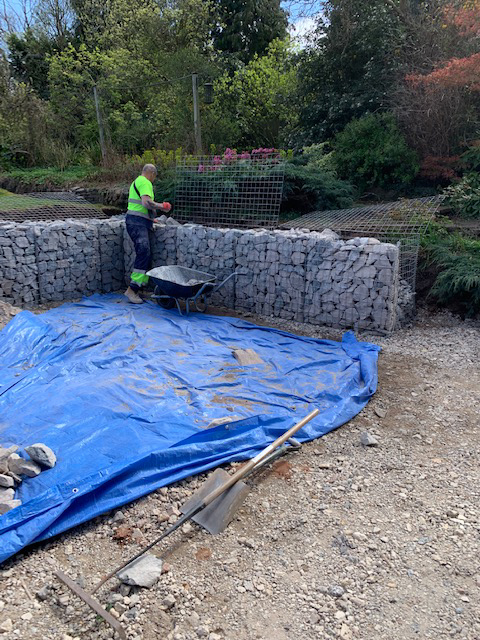

installing-driveway-gabion-wall

retained-driveway

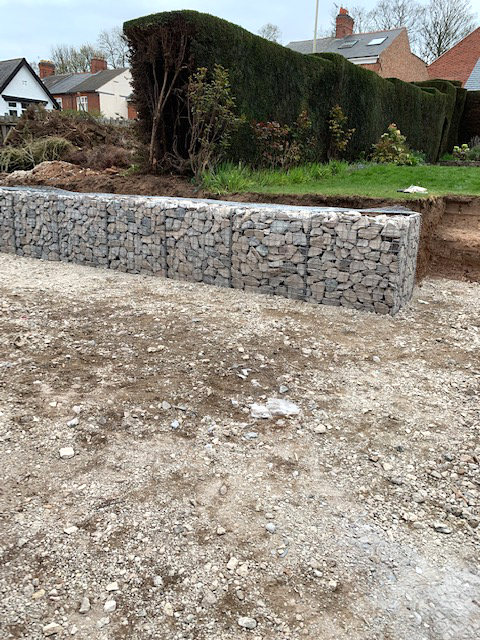

retained-garden

Gabion Stairwell using sleepers

on Monday, 03 September 2018. Posted in Gabion

Please find attached a photo of my gabion installation using your 500mm cube gabions.  We previously had access difficulties up the grass bank and your product, along with some railway sleepers, solved the problem.  I am 70 years old and did all the work myself.  Your service and delivery were excellent and I’ve already recommended you to friends.

gabion-stairway

Gabion wall in Cyprus, We supply gabions across Europe.

on Tuesday, 15 December 2015. Posted in Gabion

Pvc coated gabion wall in Cyprus. Pvc coated baskets are used for costal defences. The Pvc coating gives a considerably increased lifespan in saltwater environments.

Fine Mesh Metals ships gabions all over Europe including Cyprus.

gabion-wall-in-cypress

Gabion wall using Reclaimed slab and lighting

on Tuesday, 17 May 2016. Posted in Gabion

Just thought you'd be interested in our garden project using your baskets.

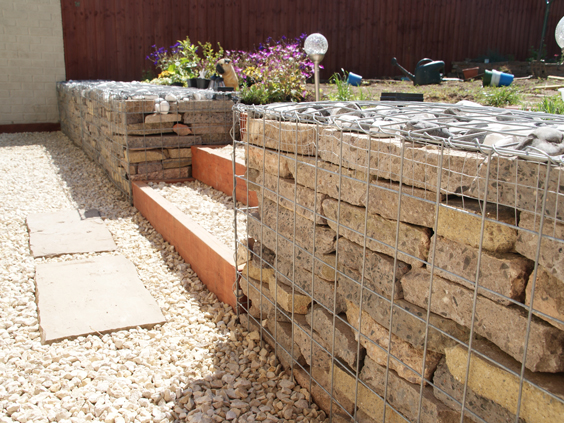

We utilised all the old patio slabs that were in the garden, smashed them up and placed them inside the gabions. Once the slabs were in we placed LED lights along the top and then hid them with large black and white cobble stones.

gabion-wall-lighting

gabion slab wall

gabion wall with lighting

Gabions used to create an outlet into the river from waste water

on Tuesday, 14 October 2014. Posted in Gabion

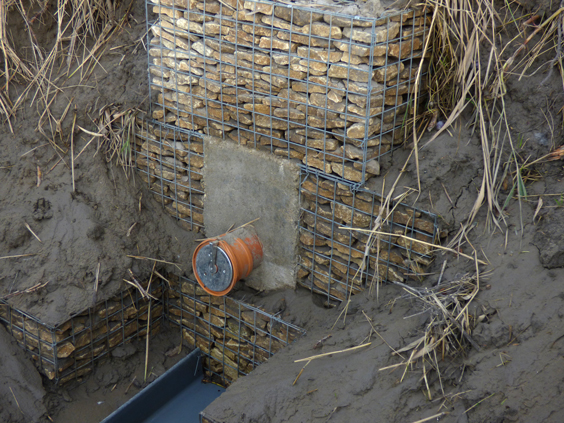

I used the gabions to create an outlet into the river from my waste water and surface water system in the house. The previous one had collapsed years ago and I was given the design, which you are welcome to use, by the Wyre (Lancashire) river authority as their best design for this sort of work. It is basically gabions complete with a “mattress” below surface and stacked and wired together with a concrete section in the middle to take the outlet pipe.

Chris

gabion-water-outlet

waste-water-outlet-using-gabions

Garden project reclaiming lawn and elegantly restraining small river

on Tuesday, 14 October 2014. Posted in Gabion

Garden project reclaiming lawn and elegantly restraining small river.

brook-and-gabion

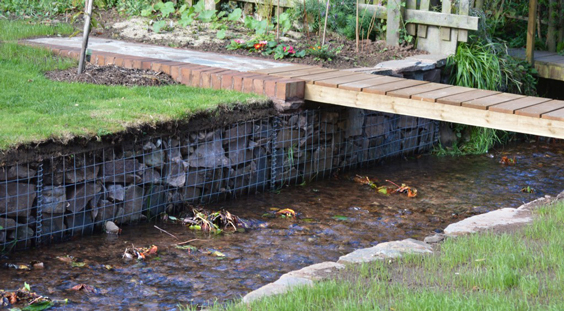

lawnandgabion

stream-and-gabion

Kentish Ragstone Gabion wall with gabion steps and slab tops

on Friday, 29 October 2021. Posted in Gabion

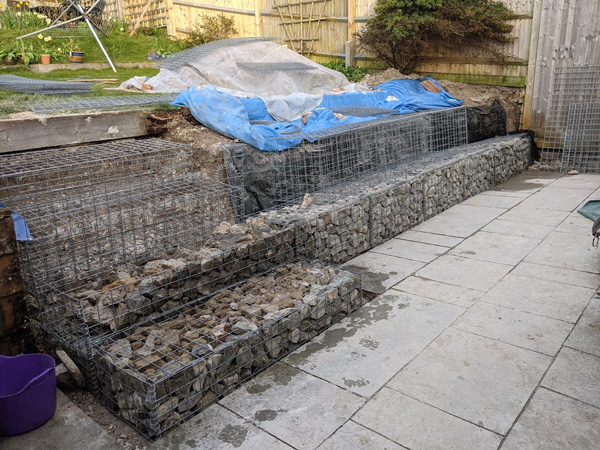

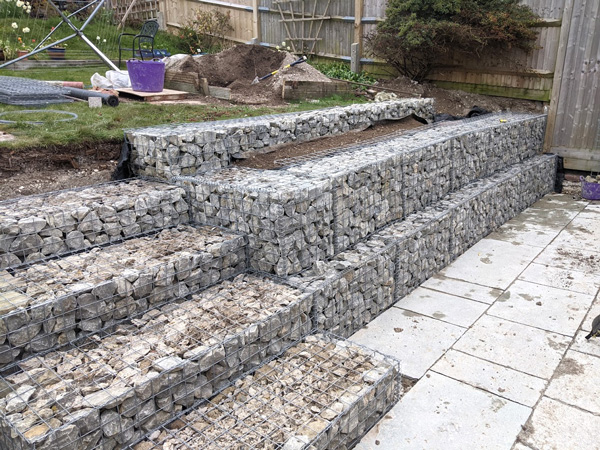

I used 3 tiers of gabions to replace a 1.2m sleeper wall that had rotted through, and created a planting area within the tiers to reduce the apparent height of the wall. We created planters from left-over mesh to hang on the face of the wall. The wall is 0.5x0.5mm 4mm mesh and the stone fill is Kent Ragstone that goes well with the existing limestone patio.

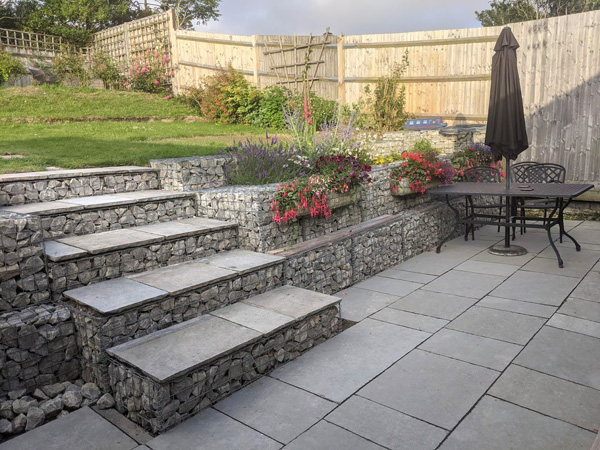

planted gabions

failed timber gabion wall

replace sleeper wall

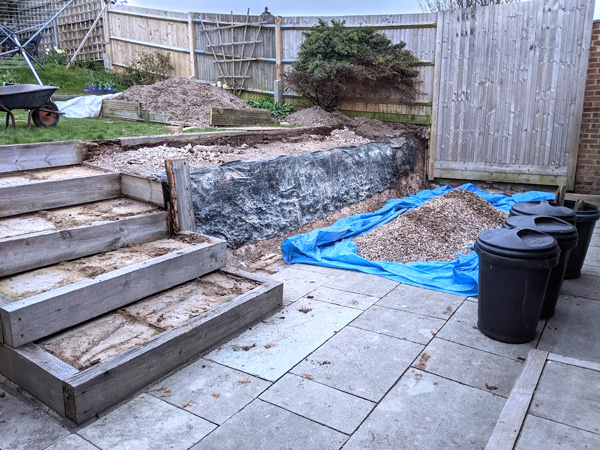

replace failed timber retaining wall

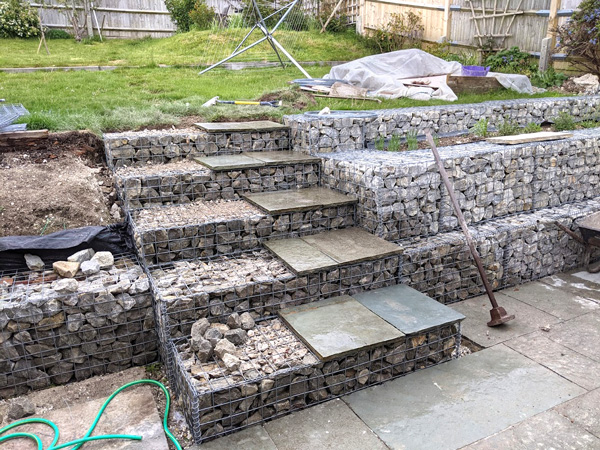

gabion step construction

gabion framed patio

gabion picture



Lake and resevoir created using gabion baskets.

on Friday, 29 August 2014. Posted in Gabion

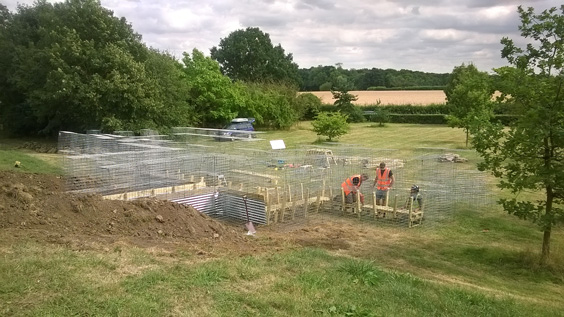

Lake and resevoir created using 5mm gabion baskets

how-to-make-a-reservoir

gabion-lake

gabion-reservoir

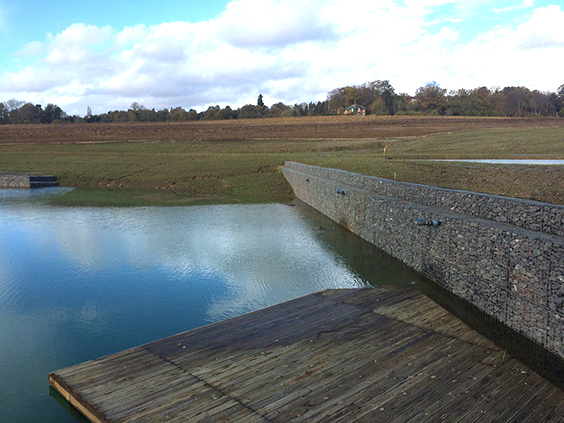

5mm-gabion-baskets

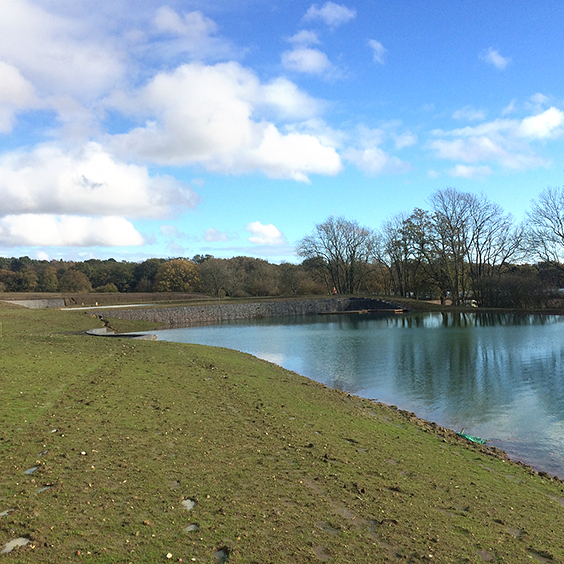

completed-resevoir

hand-laying-partitions

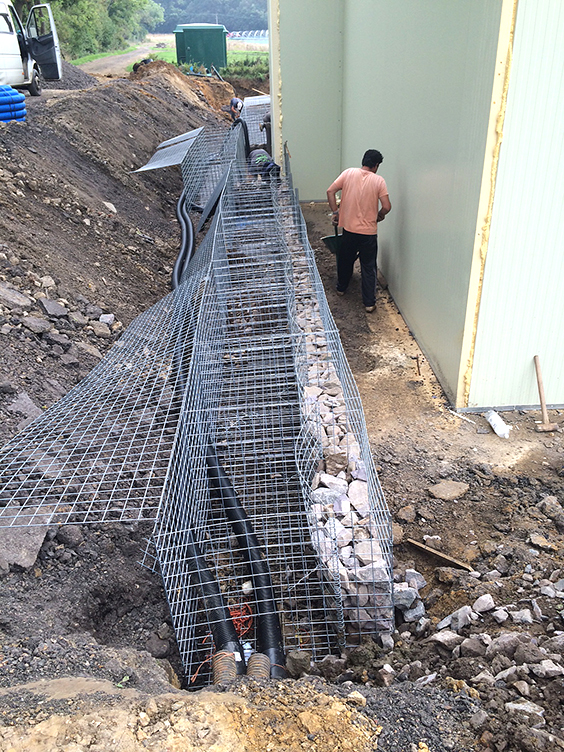

The above shows using hand laying partitions so a cheaper stone fill can be used behind

supporting-retaining-wall

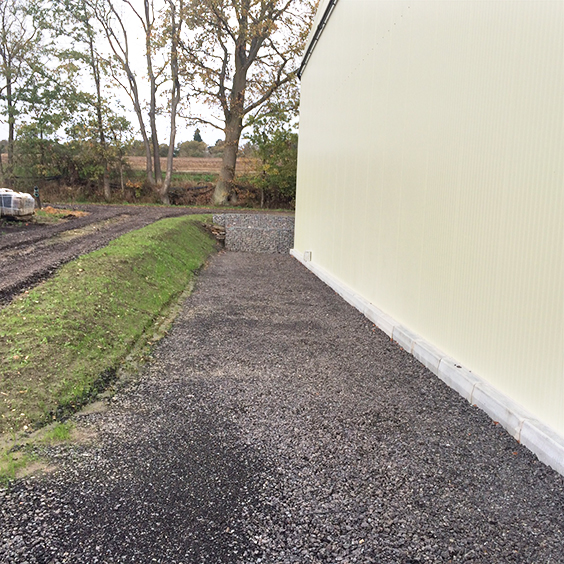

levelled-retaining-wall

Marshalls Chelsea Flower show

on Friday, 28 June 2019. Posted in Gabion

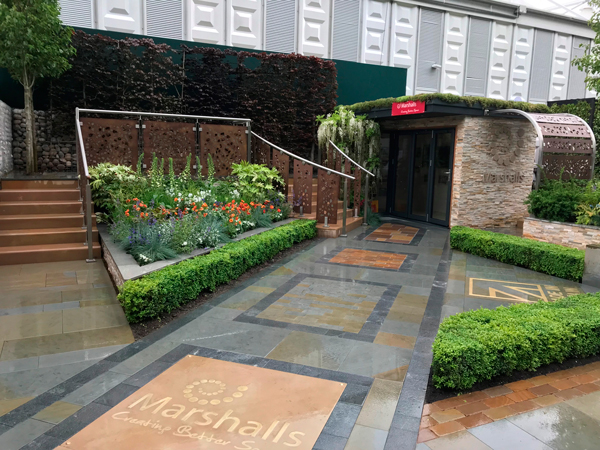

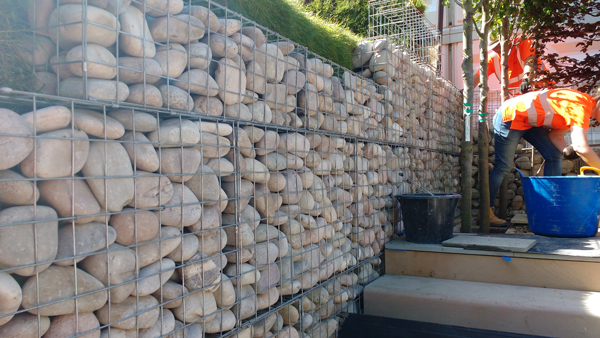

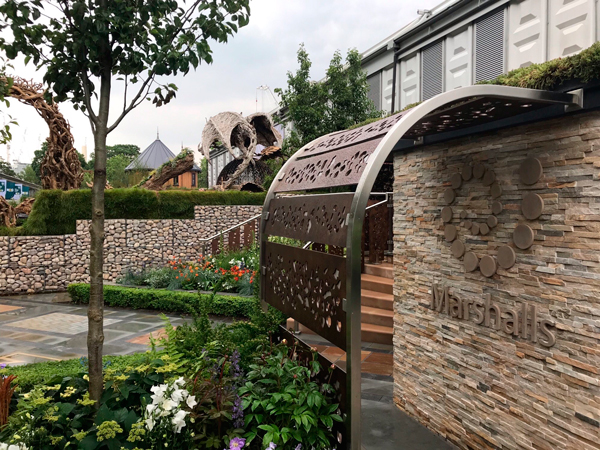

Marshall's display at RHS Chelsea Flower Show 2019, Using narrow 5mm gabion baskets with large cobble infill.

final-1

final-2

final-3

final-4

IMG 20190514 105141926

IMG 20190514 105148863

Mr Gleaves' Planted garden retaining wall

on Wednesday, 20 March 2013. Posted in Gabion

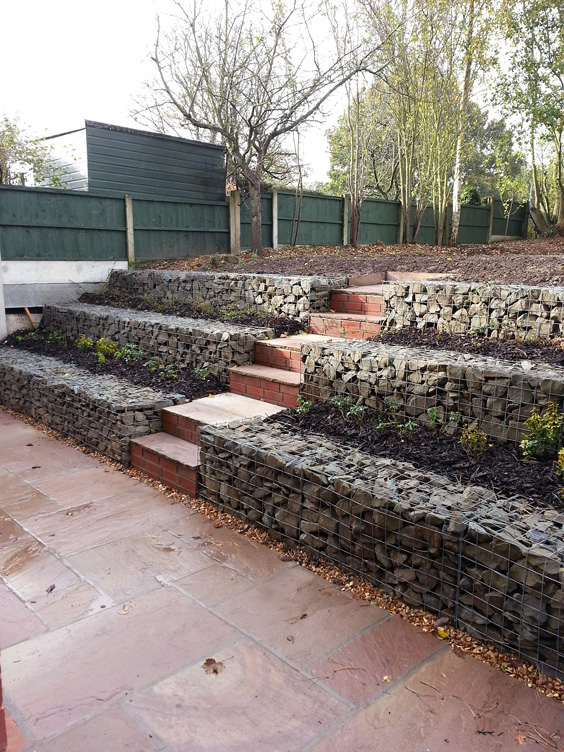

retaining walls

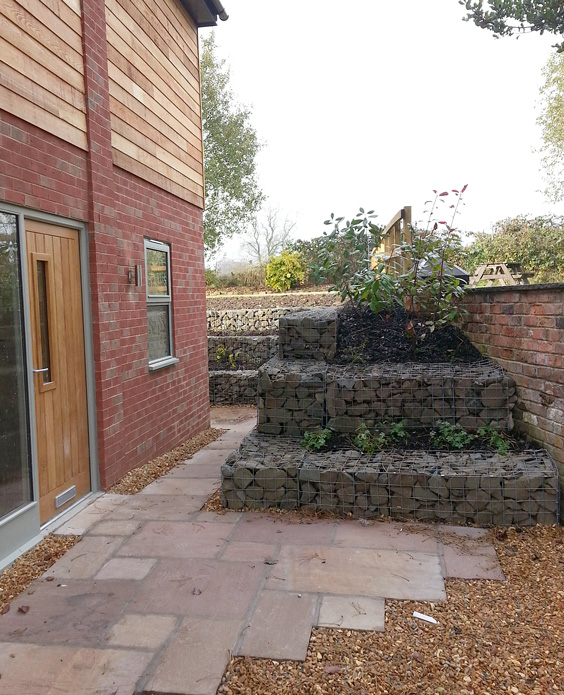

'We used Fine Mesh to supply us with Gabion baskets to create a more decorative level change at the back of our development at Barn Lane, Golborne. I truly believe that it has enhanced the aesthetics and as the planting grows will look like the rock garden we intended. The product from Fine Mesh was easy to use and delivered efficiently.'retaining wall blocks

Andy Beard

Nicoe's very smart retained driveway

on Monday, 01 July 2019. Posted in Gabion

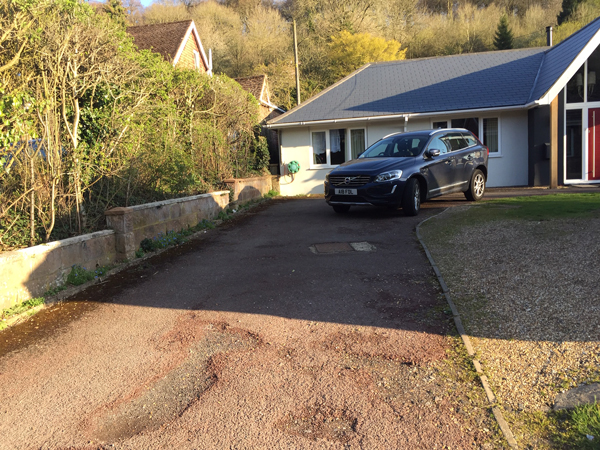

Nicole's very smart retained driveway.



front-up-to-house

front-before2

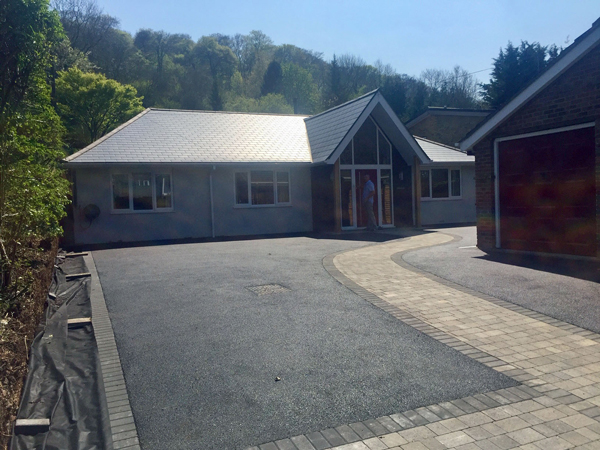

front-during

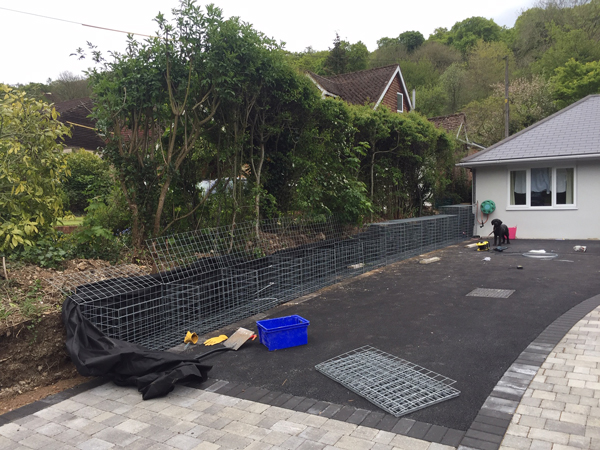

front-whilst

gabion-close-up

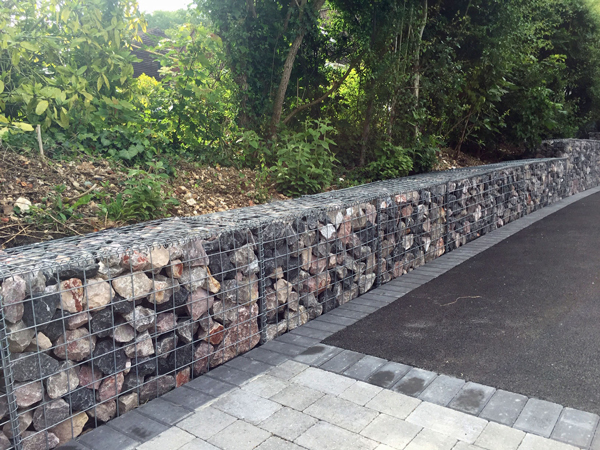

gabion-long

Normandy France Gabion drive

on Friday, 24 April 2015. Posted in Gabion

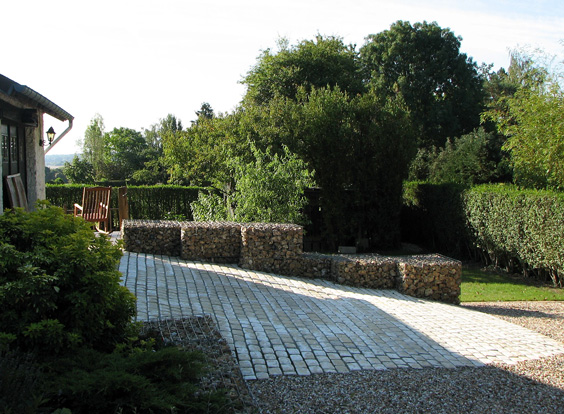

We ship across Europe. Below is an example of one of customers installs in Normandy France.

Delivery costs are reasonable to Europe using DSV, if you send through an email with your address on and what you need we will provide a shipping cost within 24hrs.

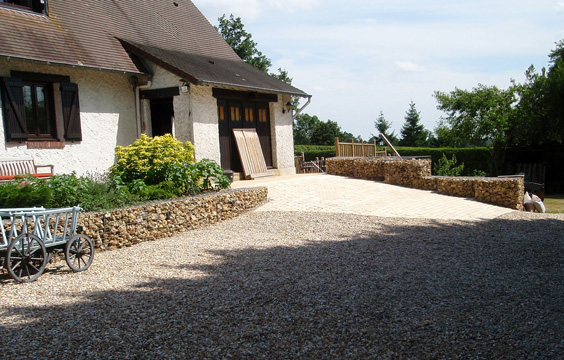

gabions-at-la-maison

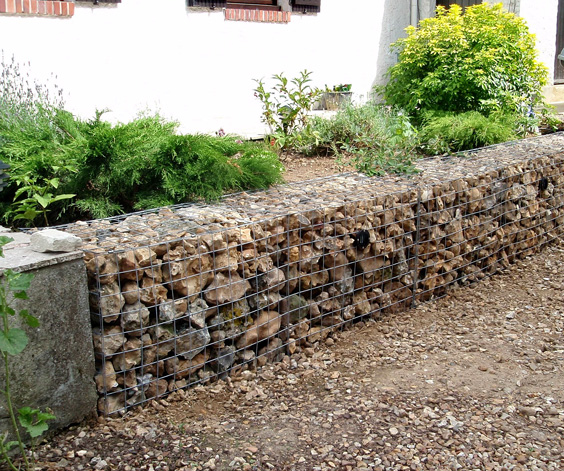

gabion-wall-in-normandie-france

gabions-in-france



P C Construction

on Tuesday, 03 December 2013. Posted in Gabion

BAM Nuttall Ltd, Luton, Dunstable

pc construction 1
P C Construction's contract work included.The supply of plant and labour to place concretefoundation, construct the gabion walling andthe placement of backfill.
  • Total m3: 320
  • Maximum Height: 2m
  • Construction Time: 1 weeks

Mansell, Hackney, London

pc construction 2
P C Construction's contract work included.The supply of plant, labour and materialsto construct the gabion walling.Gabion walling was used to retain an embankment on a new School.
  • Total m3: 650
  • Maximum Height: 3.5m
  • Construction Time: 2 weeks

Oliver Connell & Son, Manchester Airport

p c construction 3
Gabion walling was used to retain the cuttings on the new radar station at Manchester Airport. P C Construction's contract work included. The supply of plant and labour to construct the gabion wall.
  • Total m3: 185
  • Maximum Height: 3m
  • Construction Time: 1 weeks

Andy Beard

Poulsom Gabion installation

on Monday, 02 December 2013. Posted in Gabion

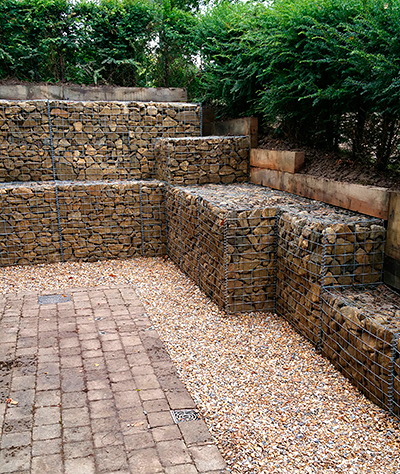

Before and after photos of gabion projects.

poulsom 2

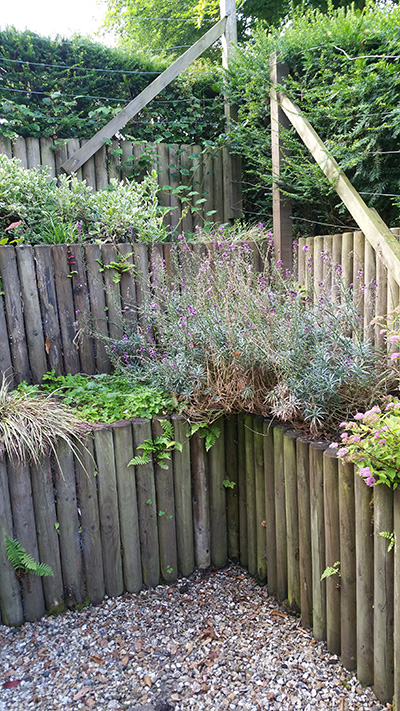

poulson-before

Before

poulsom 1

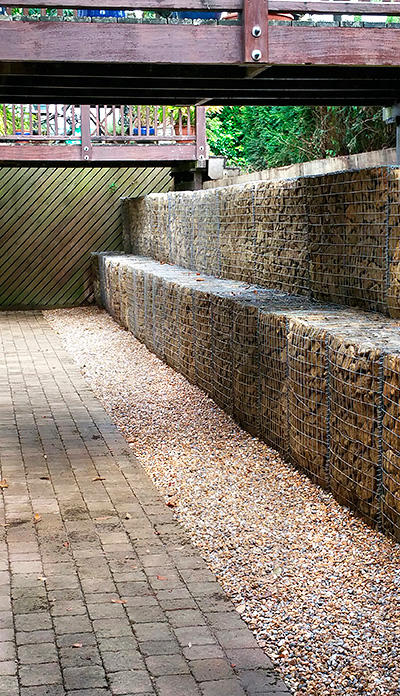

poulsom-3















Andy Beard

Rays terraced garden using gabions

on Monday, 29 September 2014. Posted in Gabion

how-to-terrace-a-garden-using-gabions

how-to-landcape-using-gabions

raysterrace

terraced-garden

raysterracebefore

how-to-terrace-a-garden

A couple of years ago I purchased the small bungalow.
Part of the garden a 3:1 slope I considered unusable/unsafe.
Unfortunately one had to cross the 12m slope to reach decking with views of the sea.

At 68, & just retired I decided to terrace the the slope for ease of access to the decking.

Gabions appeared to be a good idea.

20 ton of stone later, plus many 25 kl gravel bags, sand, cement, & paving slabs lifted up a steep drive, thence 22 steps to the slope the job was completed.
A friend assisted me with the first 6 ton of 100/250m stone other than that I completed the task alone.

You may be able to imagine lifting 20 ton of stone from the drive in two plastic buckets - soul destroying LOL.

The gabions were laid on 100 to 150mm depth of 10/20mm gravel.

Tools used.
Various spades, various picks. sawyer, wire cutters, string, bubble levels, plastic buckets, marking material.

Conclusions.
Gabions are fine, but the site should be close to material delivery point.
Good wire cutters, work gloves, & boots are essential.
Like any other building work time setting out/levelling is the mot important part of the exercise.
On cannot just dump stone in the baskets, each facing tone has to be set.
Basket bracing is essential.
Only good comments from neighbours.
A way to lose weight, in the open air..

The slope is approx 12 x12m.

1. Thanks to Steve at Glendinning Ltd., Marldon who arranged for 1.5 tons of stone to be delivered at irreguar intevals in a wagon small enough to squeeze into my drive.
2. This month because of the quality of the gabion baskets I have ordered more from Fine Mesh Metals to complet my garden project.

Regards,
Ray.

Restoring part of the old Stowmarket Navigation

on Friday, 06 November 2015. Posted in Gabion

The River Gipping Trust are restoring part of the old Stowmarket Navigation to make it suitable for a small electric trip boat to ply for trade between Needham Market and Baylham on the River Gipping. Our current work revolves around a location called Pipps Ford which has an abandoned lock.

Part of the restoration work requires us to excavate the bed of the original river course which was filled in by the Environment Agency back in the 80's. That will allow us to divert the water flow from the lock whilst we see what needs to be done to that structure. We have constructed a new bridge over the river and the gabions have been placed next to the brick side walls of the bridge to protect the walls from scour once the river course has been opened.

When the EA blocked up the river course they laid several tonnes of concrete as a causeway and removed the original bridge. We have been breaking up that concrete and using it is a filler for the gabions.

We have never done this sort of work before but the instructions on the web site were very clear and we found it easy to put the gabions together using the wire supplied, which incidentally was ample for the job. Several bags of gravel were used to give us the correct batter and the finished article looks really good.


Treasurer
River Gipping Trust



gabioned repairing lock

restoring abandoned lock

river trust gabion install

gabioned repairing lock

Retained Slope soakaway and water treatment plant using reclaimed concrete stone from driveway

on Monday, 27 April 2015. Posted in Gabion

This project involved levelling a sloped garden in a clay area with poor drainage. Within this area a new water treatment plant and soakaway was put in. The owner also wanted to replace a poorly installed cracked concrete drive with gravel. The stone from the concrete drive was smashed up and used as the infill for the basket. As the baskets were not on show the entire basket could be filled with this stone. The brand of water treatment plant allowed discharge directly to a waterway so plastic soakaway crates were allowed to be used to create a new soakaway. Terram was used on top of the baskets with a wooden sleeper on the edge retain 100mm height of soil. The terram behind the basket is semi porous and ontop of the basket impervious to stop the grass drying out.

new-soakaway-and-water-treatment-plant

sloped-ground-to-be-levelled

concrete-drive-to-be-used-as-gabion-fill

clay-soil-water-treatment-system

plastic-soakaway-crates

terram-crate-soakaway

sleeper-to-retain-soil-on-gabion



River bank repair with gabion baskets

on Friday, 22 March 2013. Posted in Gabion

river erosion

This is an example of a river bank repair using gabion baskets. The installer has also protected from undercutting and softened the front edge with extra stones. In this scenario the baskets were on the bed rock so a gabion matress was not required.river erosion repair

Andy Beard

River erosion defence and seating area

on Friday, 17 April 2015. Posted in Gabion

gabriverbank1

gabriverbank2

gabriverbank3

gabriverbank4

Slipping burn endagering property

on Thursday, 19 May 2016. Posted in Gabion

A burn had eroded the ground away and the banking was slipping away in slices and endangering the property. We detailed to client what we would do to stop the slippage with gabion baskets. Our client is a great gardener and wanted something that would work with the old property. Since photos were taken the burn has been in full spate with the winter rain we get here in the west of Scotland and no further slippage! We have now installed handrails down the steps and owner has started planting in the gabions. Happy client.

steep-gabion-wall

planted-gabion-wall

tall-gabion-wall

Timber_&_gabion_boundary_fence

on Monday, 01 July 2019. Posted in Gabion

Deans Dividing Gabion pillar fence with timber panel. The Gabion pillars are supported by scaffolding concreted into the ground.IMG 20180820 125235533

IMG 20180820 125235533

IMG 20190404 164720247

IMG 20190424 105624624

IMG 20190428 160532411

DSC01168

DSC01172

IMG 20190605 134005627

IMG 20190530 112616808

Twycross zoo, gabion baskets

on Friday, 22 March 2013. Posted in Gabion

retaining wall for zoo

These are gabion baskets installed by Rock and Water for a project at Twycross zoo.

gabions for zooperimeter gabion wallangled gabion wallbuffalo in front of gabion baskets

Andy Beard

Wild Roof Gabion Bench and Gabion Steps

on Wednesday, 20 March 2013. Posted in Gabion

 Gabion steps

Image of wall – client wanted a very contemporary look to a small back garden space – gabion baskets and white cobbles gave just the right look. Image of seat – client wanted an unusual seat for a front garden space to sit and read books. Gabion baskets were the answer.

Gabion seat

Contractor Wild roof: We cover most of Cumbria and build mid to high end gardens. We are Association of Professional Landscapers members and Trustmark approved. Our website is www.wildroof.co.uk

Andy Beard

WW1 trenches re-enactment used as teaching and learning resources

on Wednesday, 13 August 2014. Posted in Gabion

Haileybury College in Hertfordshire wished to create a "trench trail" for their students and to share with schools in the area to come and learn about the First World War. Through the Trenches for Teachers project, historian Andy Robertshaw helped bring history alive to include a reproduction trench system complete with two fire steps, a dug out and first aid post along with the supply of reproduction items and teaching pack to enable students to interpret and experience elements of the conflict and life as a British soldier.

The frame work for the structure is made using custom made gabion baskets in 3mm wire.

photos www.andyrobertshaw.com / www.trenchesforteachers.co.uk





trenches1

trenches2

trenches3

trenches4

trenches5

trenches6

trenhes7

trenches8

trenches9

trenches10


Send us your feedback
