Double Wire Gabion Fencing System

doubkle-wire-gabion-fencing

As its not a product we manufacture. The lead time is up to 4 weeks. Minimum of 5 units.

This is a solution for narrow free standing fencing walls. Especially suitable for dividing partitions and concealing areas such as bin stores.

They offer privacy and security with the look of a gabion wall.

Can be filled with Sedums to make a living wall.

Double Wire panels are exceptionally strong due to the narrower meshes and heavy duty wire.

Stone size should be 3 inches to 4 inch. Angular stone is more effective than round pebbles.








Name
Size
Aperture
Thickness
Finish
Quantity

Price

Double Wire Bay 2.508 x .63High Min order (10m 4Bays)
Name: Double Wire Bay 2.508 x .63High Min order (10m 4Bays)
Size: 2.508x .63m m
Aperture: 50x200 mm2x8 (in)
Thickness: 6&8 mm4&0 6&8
Finish: Galv&PPC

Update
Prices

Price: £155.93
£129.94
(per 2.5m Bay)

product star product star product star product star product star
  • We do not export this product
  • Double Wire Bay 2.508 x .83High Min order (10m 4Bays)
    Name: Double Wire Bay 2.508 x .83High Min order (10m 4Bays)
    Size: 2.508x .83m m
    Aperture: 50x200 mm2x8 (in)
    Thickness: 6&8 mm4&0 6&8
    Finish: Galv&PPC

    Update
    Prices

    Price: £155.93
    £129.94
    (per 2.5m Bay)

    product star product star product star product star product star
  • We do not export this product
  • Double Wire Bay 2.508 x 1.03High Min order (10m 4Bays)
    Name: Double Wire Bay 2.508 x 1.03High Min order (10m 4Bays)
    Size: 2.508x 1.03m m
    Aperture: 50x200 mm2x8 (in)
    Thickness: 6&8 mm4&0 6&8
    Finish: Galv&PPC

    Update
    Prices

    Price: £176.29
    £146.91
    (per 2.5m Bay)

    product star product star product star product star product star
  • We do not export this product
  • Double Wire Bay 2.508 x 1.23High Min order (10m 4Bays)
    Name: Double Wire Bay 2.508 x 1.23High Min order (10m 4Bays)
    Size: 2.508x 1.23m m
    Aperture: 50x200 mm2x8 (in)
    Thickness: 6&8 mm4&0 6&8
    Finish: Galv&PPC

    Update
    Prices

    Price: £197.22
    £164.35
    (per 2.5m Bay)

    product star product star product star product star product star
  • We do not export this product
  • Double Wire Bay 2.508 x 1.43High Min order (10m 4Bays)
    Name: Double Wire Bay 2.508 x 1.43High Min order (10m 4Bays)
    Size: 2.508x 1.43m m
    Aperture: 50x200 mm2x8 (in)
    Thickness: 6&8 mm4&0 6&8
    Finish: Galv&PPC

    Update
    Prices

    Price: £218.30
    £181.92
    (per 2.5m Bay)

    product star product star product star product star product star
  • We do not export this product
  • Double Wire Bay 2.508 x 1.63High Min order (10m 4Bays)
    Name: Double Wire Bay 2.508 x 1.63High Min order (10m 4Bays)
    Size: 2.508x 1.63m m
    Aperture: 50x200 mm2x8 (in)
    Thickness: 6&8 mm4&0 6&8
    Finish: Galv&PPC

    Update
    Prices

    Price: £239.26
    £199.38
    (per 2.5m Bay)

    product star product star product star product star product star
  • We do not export this product
  • Double Wire Bay 2.508 x 1.83High Min order (10m 4Bays)
    Name: Double Wire Bay 2.508 x 1.83High Min order (10m 4Bays)
    Size: 2.508x 1.83m m
    Aperture: 50x200 mm2x8 (in)
    Thickness: 6&8 mm4&0 6&8
    Finish: Galv&PPC

    Update
    Prices

    Price: £260.23
    £216.86
    (per 2.5m Bay)

    product star product star product star product star product star
  • We do not export this product
  • Double Wire Bay 2.508 x 2.03High Min order (10m 4Bays)
    Name: Double Wire Bay 2.508 x 2.03High Min order (10m 4Bays)
    Size: 2.508x 2.03m m
    Aperture: 50x200 mm2x8 (in)
    Thickness: 6&8 mm4&0 6&8
    Finish: Galv&PPC

    Update
    Prices

    Price: £280.97
    £234.14
    (per 2.5m Bay)

    product star product star product star product star product star
  • We do not export this product
  • Double Wire Bay 2.508 x 2.23High Min order (10m 4Bays)
    Name: Double Wire Bay 2.508 x 2.23High Min order (10m 4Bays)
    Size: 2.508x 2.23m m
    Aperture: 50x200 mm2x8 (in)
    Thickness: 6&8 mm4&0 6&8
    Finish: Galv&PPC

    Update
    Prices

    Price: £301.96
    £251.63
    (per 2.5m Bay)

    product star product star product star product star product star
  • We do not export this product
  • Double Wire Bay 2.508 x 2.43High Min order (10m 4Bays)
    Name: Double Wire Bay 2.508 x 2.43High Min order (10m 4Bays)
    Size: 2.508x 2.43m m
    Aperture: 50x200 mm2x8 (in)
    Thickness: 6&8 mm4&0 6&8
    Finish: Galv&PPC

    Update
    Prices

    Price: £324.48
    £270.40
    (per 2.5m Bay)

    product star product star product star product star product star
  • We do not export this product
  • Horizontal Wires 2 x 8mm and 6mm Vertical wire thickness

    Mesh size 50 x 200

    Available heights 630 to 2430mm

    Finishes

    Galv with Polyester powder coating

    Hot dip gal according to EN ISO 1461

    Standard Colours RAL 6005, 6009, 7016 & 9005

    Applications

    Security level 7

    Schools

    Housing

    Public places

    Industry

    Sports Fields

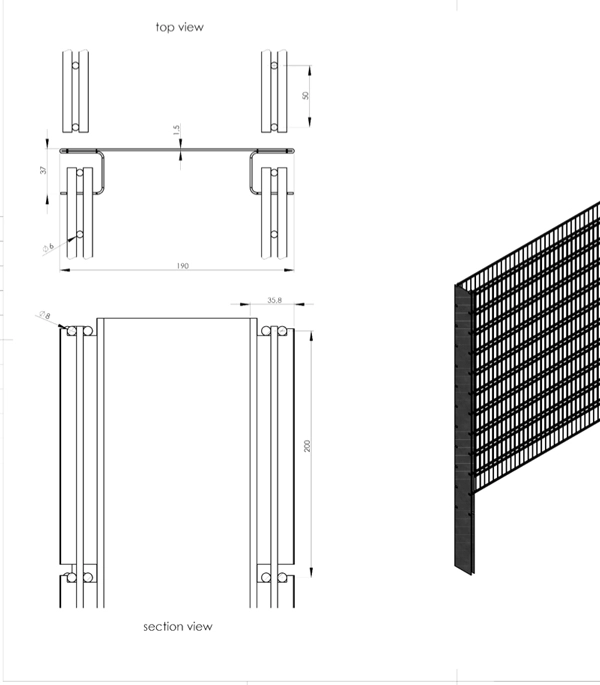

    gabion-fencing-installation-1

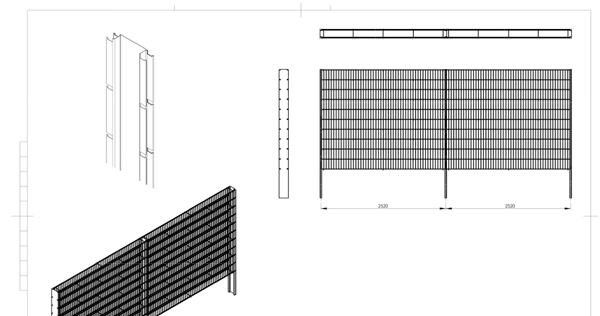

    gabion-fencing-installation-2

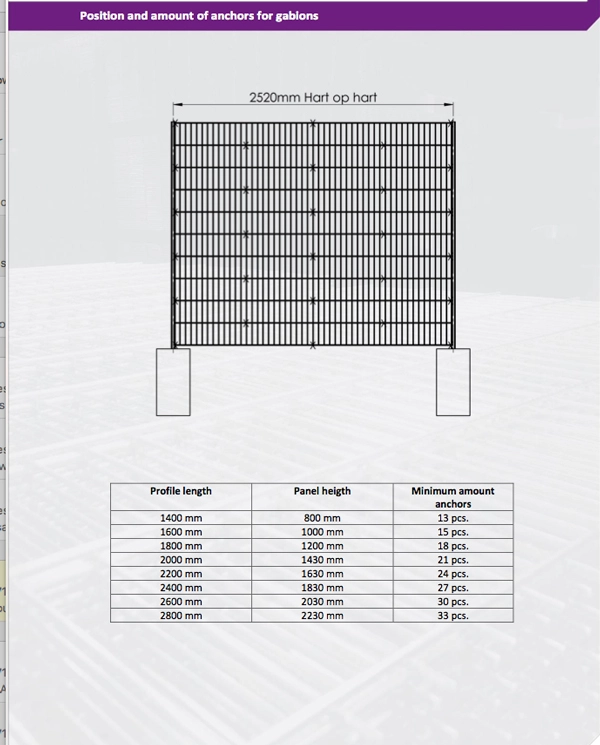

    GABION-FENCING-INSTALLATION-3

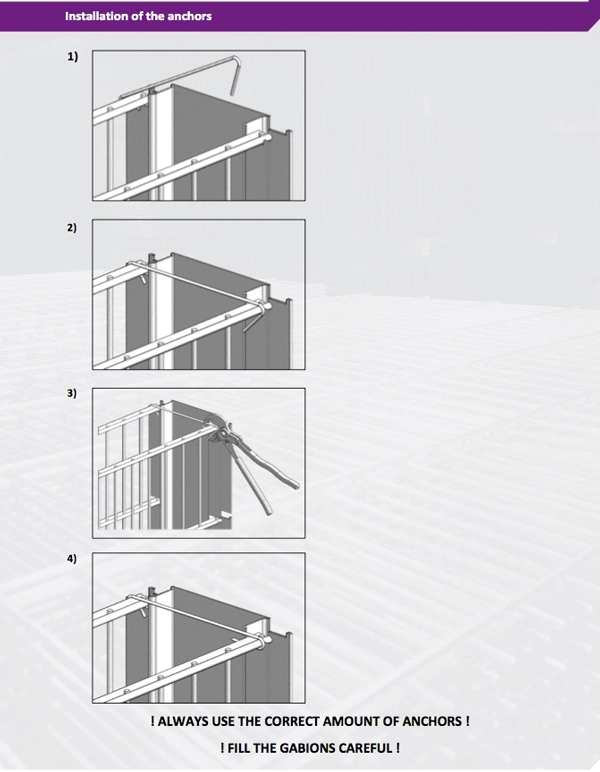

    Gbaion-fencing-installation-4

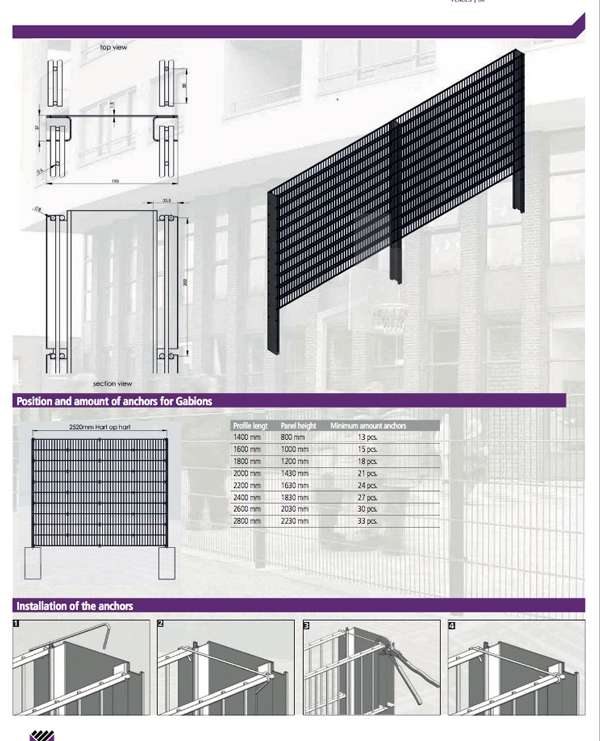

    GAGION-FENCING-INSTALLATION-5

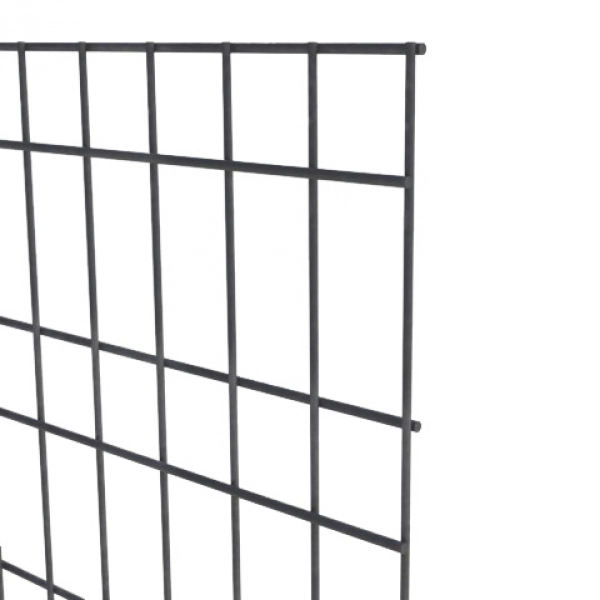

    The Zenturo Super panels are fl at panels with double (2D) alternating

    horizontal wires for added strength. The panels are 2005 mm wide and are

    available in heights from 655 mm up to 2005 mm.

    Mesh sizes: 100 x 50 and 50 x 50 mm

    Horizontal wire diameter: 5.00 mm

    Vertical wire diameter: 4.15 mm

    As a finishing touch, we have developed an extra panel (with wire diameter

    of 3.80 mm) which needs to be fixed at the top of the gabion wall (once the

    gabion wall has been filled up). It is available in anthracite (BF7016M).

    zenturo2


    Bekaclip posts

    Bekaclip posts are iron posts with a diameter of 48 mm for easy installation

    of the Bekafor & Zenturo panels in all conditions.

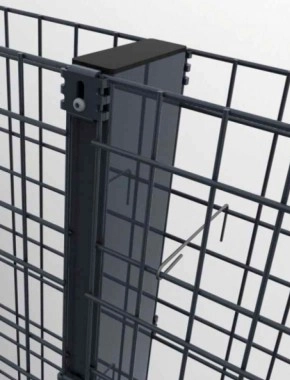

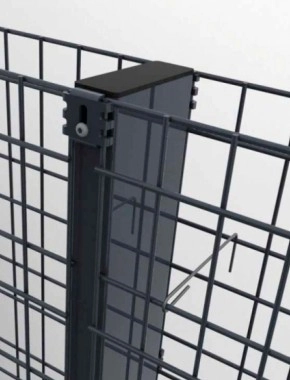

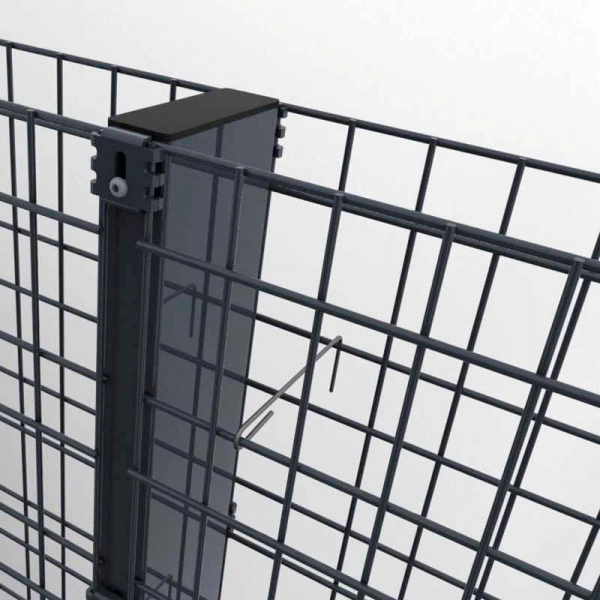

    Zenturo posts (available in concrete or on baseplate)

    The Zenturo Post is a rectangular tube with a cross section of 120 x 40 mm

    and a wall thickness of 2.00 mm. Galvanised and polyester plastic coated.

    zenturo3


    The panels are made of galvanised wire, and an adhesion layer is providedfor perfect adhesion with the polyester top coating (min. 100 micron).The posts are internally and externally galvanised (min. layer thickness275g/m², both sides combined) according to Euro standard EN 10346,after which an adhesion layer is applied and polyester plastic coated (min. 60 micron)

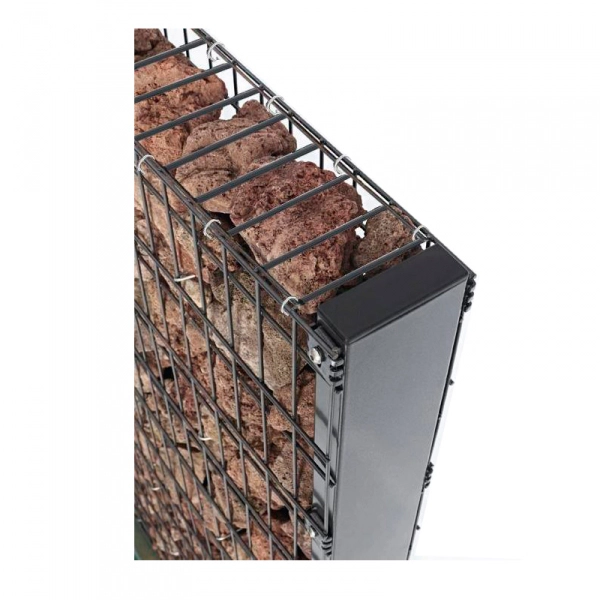

    zenturo1

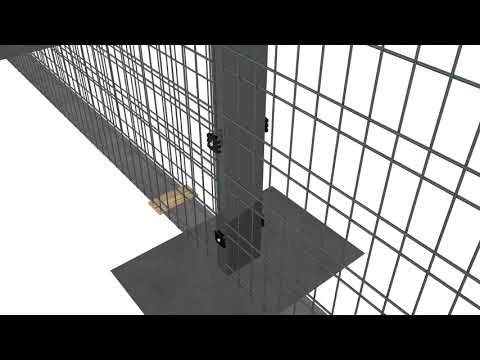

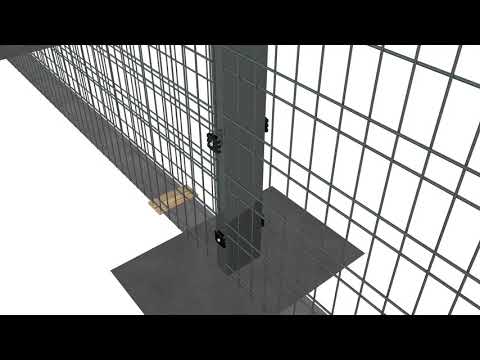

    https://youtu.be/cgeNgQY4ADU

    Examples and More information

    double-wire-fencing-post

    double-wire-fencing-system-Galvanized



    double-wire-mesh-panel

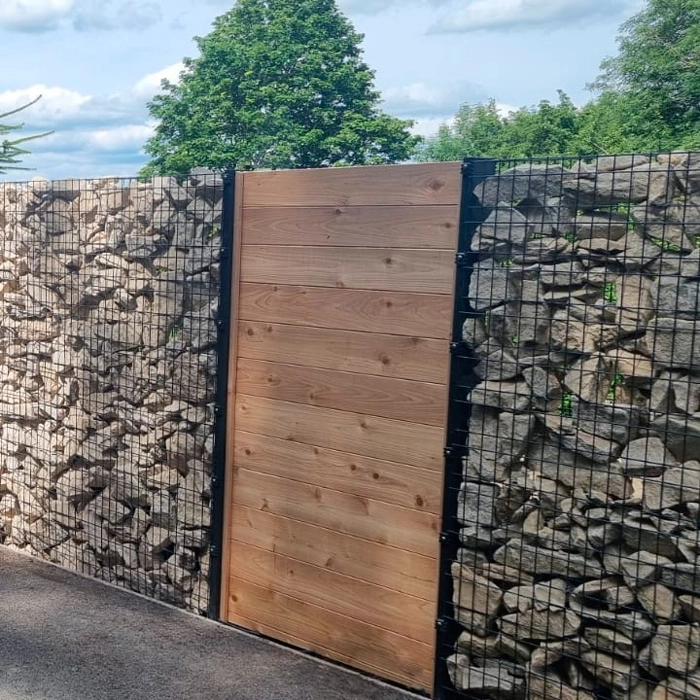

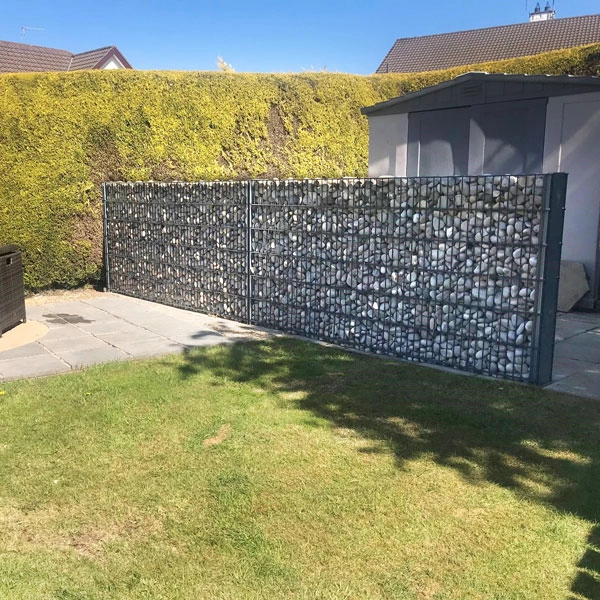

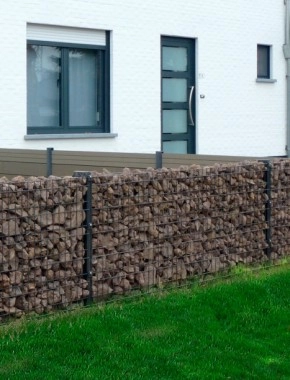

    Zenturo Gabion Fencing Examples

    We can also price the Zenturo system in pictures if required, but this is normally supplied in large volumes and is more expensive.

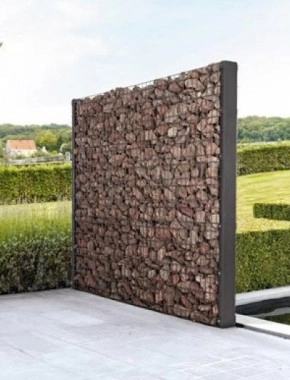

    zenturo-gabion-fencing

    zenturo-super-2-600x448
